XMLP10KPD73

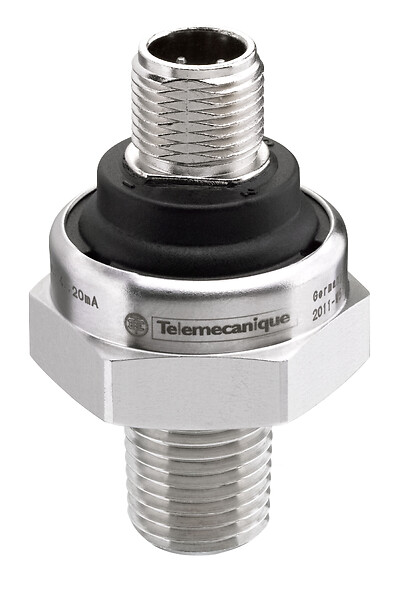

Pressure transmitter - XMLP - 10000psi - 1/4"18NPT - 0..10V - M12 - set 1
End of commercialisation End of commercialization date : End of service date :
Expand all
Datasheet
Range of product
Telemecanique Pressure sensors XM
Product or component type
Electronic pressure sensors
Pressure sensor type
Pressure transmitter
Pressure sensor name
XMLP
Fluid connection type
1/4" - 18 NPT (male)
Electrical circuit type
Control circuit
Electrical connection
1 male connector M12 4 pins
Type of output signal
Analogue
[Us] rated supply voltage
24 V DC SELV (voltage limits: 14-30 V)
Analogue output function
0...10 V, 3-wire
Quantity per set
Set of 1
Type of packing
Individual
Materials in contact with fluid
Stainless steel type 17-4PH
stainless steel type AISI 304
stainless steel type AISI 304
Scale type
Fixed differential
Controlled fluid
Fresh water (0-120 °C), air (-30-120 °C), hydraulic oil (-30-120 °C), gas (-30-120 °C), refrigeration fluid (-30-120 °C)
Local display
Without
Current consumption
< 10 mA
Electromagnetic compatibility
Susceptibility to electromagnetic fields conforming to IEC 61000-4-3 10 V/m 80...1000 MHz, electrical fast transient/burst immunity test conforming to IEC 61000-4-4 2 kV, 1.2/50 µs shock waves immunity test conforming to IEC 61000-4-5 500 V 12 Ohm, 1 kV 42 Ohm, radiated RF fields conforming to IEC 61000-4-6 10 V 0.15...80 MHz, electrostatic discharge immunity test conforming to IEC 61000-4-2 8 kV air, 4 kV contact
Protection type
Load short-circuit
reverse polarity
reverse polarity
Response time on output
< 5 ms 92 % of full scale
Accuracy
Infinity
Drift of the sensitivity
+/- 0,02 % of measuring range/°K
Drift of the zero point
+/- 0,02 % of measuring range/°K
Repeat accuracy
+/- 0,2 % de la plage de mesure
Measurement accuracy
+/- 0,5 % de la plage de mesure
Operating position
Any position
Standards
CE
EN/IEC 61326-1
EN/IEC 61326-1
Product certifications
cULus
RCM
RCM
Protective treatment
TC
Vibration resistance
20 gn (f = 10-2000 Hz) conforming to EN/IEC 60068-2-64
Shock resistance
25 gn for 11 ms conforming to IEC 60068-2-27
IP degree of protection
IP65 conforming to IEC 60529, IP67 conforming to IEC 60529, IP69K conforming to DIN 40050
Unit type of package 1
PCE
Number of units in package 1
1
