XS4P18MA230L01C

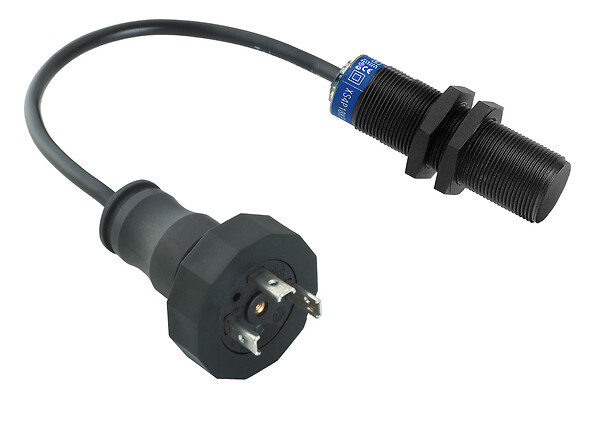

Inductive sensor XS4 M18 - L62mm - PPS - Sn8mm - 24..240VAC/DC - DIN 0.15M

End of commercialisation End of commercialization date : End of service date :

Download pdf datasheet Download 3d cad file Find a distributor

Expand all

Datasheet

Range of product
Telemecanique Inductive proximity sensors XS
Series name
General purpose
Sensor type
Inductive proximity sensor
Sensor name
XS4
Sensor design
Cylindrical M18
Size
62 mm
Body type
Fixed
Type of output signal
Discrete
Wiring technique
2-wire
Discrete output function
1 NO
Detector flush mounting acceptance
Non flush mountable
Material
Plastic
Electrical connection
Remote male connector DIN 43650A, 4 pins
[Us] rated supply voltage
24...240 V AC/DC 50/60 Hz
Output circuit type
AC/DC
Switching capacity in mA
5...200 mA DC, 5...300 mA AC
IP degree of protection
IP67 conforming to IEC 60529
Enclosure material
PPS
Detection face
Frontal
Thread type
M18 x 1
Front material
PPS
Sensing range
> 4...8 mm
Differential travel
1...15 % of Sr
Cable composition
2 x 0.34 mm²
Residual current
0.6 mA open state
Status LED
Output state: 1 LED (yellow)
Wire insulation material
PVC
Switching frequency
<= 2000 Hz DC, <= 25 Hz AC
Voltage drop
<5.5 V (closed)
Delay first up
40 MILLISECOND
Delay response
0.2 MILLISECOND
Marking
CE
Delay recovery
0.2 MILLISECOND
Product certifications
CCC
CSA
UL
Vibration resistance
25 gn amplitude = +/- 2 mm (f = 10-55 Hz) conforming to IEC 60068-2-6
Shock resistance
50 gn for 11 ms conforming to IEC 60068-2-27
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
4.2 CENTIMETER
Package 1 width
9.7 CENTIMETER
Package 1 length
13.2 CENTIMETER
Package 1 weight
82 GRAM
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Expand all

Technical Drawings

Dimensions

epds

Minimum Mounting Distances

epds
epds
epds
epds

Wiring Schemes

EN 175301-803-A

epds

Wiring Schemes

2-Wire AC or DC

epds

Performance Curves

Standard Steel Target : 24x24x1 mm

epds
