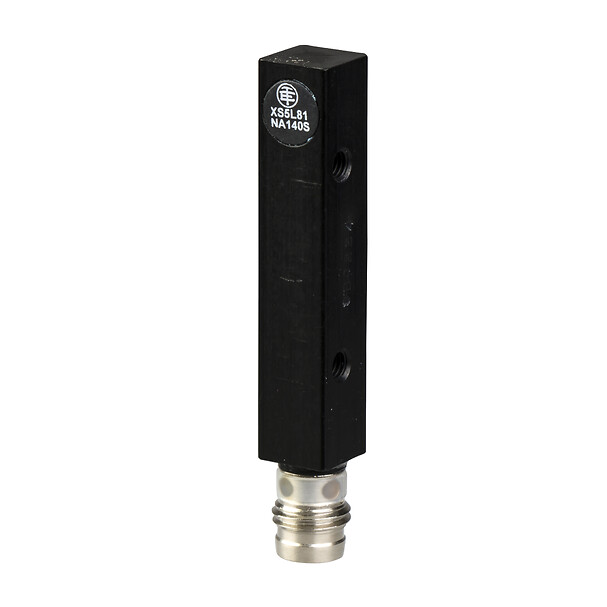

XS5L81PA140S
Inductive proximity sensors XS, inductive sensor XS5 8x43x8, brass, Sn1.5 mm, 12...24 VDC, M8
End of commercialisation End of commercialization date : End of service date :
Expand all
Datasheet
Range of product
Telemecanique Inductive proximity sensors XS
Series name
General purpose
Sensor type
Inductive proximity sensor
Product specific application
Not applicable
Sensor name
XS5
Sensor design
Form 8 x 43 x 8
Size
8 mm
Body type
Fixed
Type of output signal
Discrete
Wiring technique
3-wire
Enclosure material
Nickel plated brass
Discrete output function
1 NO
Discrete output type
PNP
Electrical connection
Male connector M8, 3 pins
[Us] rated supply voltage
12...24 V DC
Switching capacity in mA
<= 200 mA
IP degree of protection
IP67
Detector flush mounting acceptance
Flush mountable
Material
Metal
Output circuit type
DC
Detection face
Lateral top
Sensing range
> 0...2.5 mm
Front material
PPS
Switching frequency
<= 2500 Hz
Marking
CE
Product certifications
UL
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
3.5 CENTIMETER
Package 1 width
7 CENTIMETER
Package 1 length
4.5 CENTIMETER
Package 1 weight
17 GRAM
Unit type of package 2
S01
Number of units in package 2
40
Package 2 height
15 CENTIMETER
Package 2 width
15 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
925 GRAM
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Expand all
Documents & Downloads
Document name
Date
Size
1997-06-01
46337
Expand all
Related products & accessories
XZCP0566L5
Pre wired connectors XZ, straight female, M8, 3 pins, cable PUR 5 m
XZCP0666L5
Pre wired connectors XZ, elbowed female, M8, 3 pins, cable PUR 5 m
