XS7D1A3CAM12DIN
Inductive proximity sensors XS, inductive sensor XS7 80x80x40, PBT, Sn50mm, 10...48 VDC, M12
Commercialised
Expand all
Datasheet
Range of product
Telemecanique Inductive proximity sensors XS
Series name
Application
Sensor type
Inductive proximity sensor
Device application
Not applicable
Sensor name
XS7
Sensor design
Flat form 80 x 80 x 40
Size
40 mm
Body type
Fixed clippable onto DIN rail
Enclosure material
PBT
Type of output signal
Discrete
Wiring technique
2-wire
Discrete output function
1 NO
Electrical connection
Male connector M12, 4 pins
[Us] rated supply voltage
10...48 V DC with reverse polarity protection
IP degree of protection
IP67 double insulation conforming to IEC 60529
Switching capacity in mA
1.5...300 mA with overload and short-circuit protection
Detector flush mounting acceptance
Flush mountable
Material
Plastic
Output circuit type
DC
Detection face
Frontal
Front material
PBT
Repeat accuracy
<= 3% of Sr
Differential travel
1...15 % of Sr
Sensing range
> 40...60 mm
Status LED
Output state: 1 LED (yellow)
Switching frequency
<= 100 Hz
Residual current
0.5 mA open state
Voltage drop
<4.5 V (closed)
Delay first up
10 MILLISECOND
Marking
CE
Delay response
2 MILLISECOND
Delay recovery
5 MILLISECOND
Shock resistance
50 gn for 11 ms conforming to IEC 60068-2-27
Vibration resistance
25 gn amplitude = +/- 2 mm (f = 10-55 Hz) conforming to IEC 60068-2-6
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
4.3 CENTIMETER
Package 1 width
9.6 CENTIMETER
Package 1 weight
0.345 KILOGRAM
Package 1 length
13.2 CENTIMETER
Unit type of package 2
S02
Number of units in package 2
22
Package 2 height
15 CENTIMETER
Package 2 width
30 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
8.045 KILOGRAM
Unit type of package 3
S03
Number of units in package 3
44
Package 3 height
30 CENTIMETER
Package 3 width
30 CENTIMETER
Package 3 length
40 CENTIMETER
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Expand all
Technical Drawings

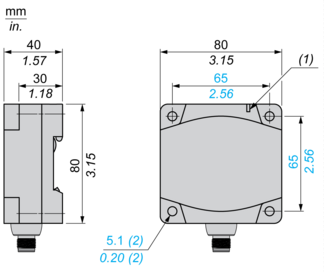

Dimensions
Setting-up
Minimum Mounting Distances (mm)
Minimum Mounting Distances (mm)
Minimum Mounting Distances (mm)
Minimum Mounting Distances (mm)
Flush Conditions
In A37 Steel
Wiring Schemes
3-Wire Connection
3-Wire Connection
Expand all
Documents & Downloads
Document name
Date
Size
2025-01-01
22731526
Document name
Date
Size
2025-05-19
339602
Document name
Date
Size
2025-05-15
255277
Document name
Date
Size
2024-06-27
191540
Expand all
