XS7F1A1PCL1TF

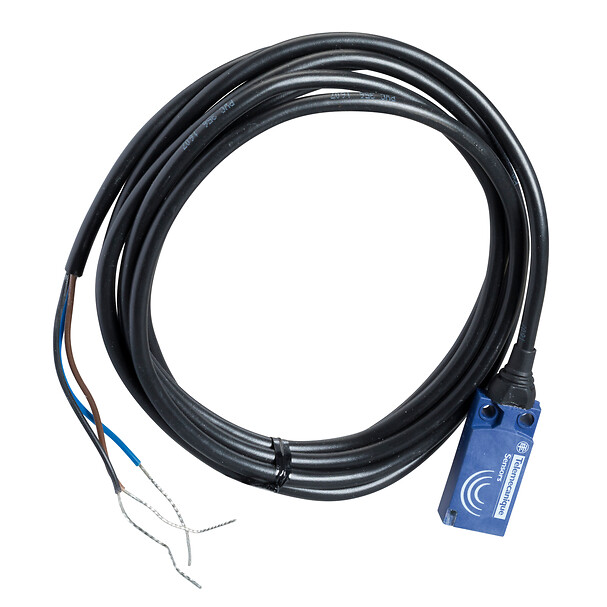

Inductive proximity sensors XS, inductive sensor XS7 15x32x8, PBT, Sn5mm, 12...24 VDC, cable 1 m
Commercialised
Expand all
Datasheet
Range of product
Telemecanique Inductive proximity sensors XS
Series name
General purpose
Sensor type
Inductive proximity sensor
Sensor name
XS7
Device application
Not applicable
Sensor design
Flat form 15 x 32 x 8
Size
8 mm
Body type
Fixed
Type of output signal
Discrete
Wiring technique
4-wire
Discrete output function
1 NO + 1 NC
Detector flush mounting acceptance
Flush mountable
Discrete output type
PNP
Material
Plastic
Electrical connection
Cable
[Us] rated supply voltage
12...24 V DC with reverse polarity protection
Output circuit type
DC
Switching capacity in mA
<= 100 mA DC with overload and short-circuit protection
IP degree of protection
IP68 conforming to IEC 60529
Enclosure material
PBT
Detection face
Frontal
Front material
PBT
Sensing range
> 4...8 mm
Differential travel
1...15 % of Sr
Cable composition
4 x 0.5 mm²
Status LED
Output state: 1 LED (yellow)
Wire insulation material
PVC
Switching frequency
<= 2000 Hz
Voltage drop
<2 V (closed)
Current consumption
<= 10 mA no-load
Delay first up
5 MILLISECOND
Delay response
0.1 MILLISECOND
Marking
CE
Delay recovery
0.1 MILLISECOND
Vibration resistance
25 gn amplitude = +/- 2 mm (f = 10-55 Hz) conforming to IEC 60068-2-6
Shock resistance
50 gn for 11 ms conforming to IEC 60068-2-27
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
4.1 CENTIMETER
Package 1 width
13 CENTIMETER
Package 1 length
9.5 CENTIMETER
Package 1 weight
0.063 KILOGRAM
Unit type of package 2
S02
Number of units in package 2
16
Package 2 height
30 CENTIMETER
Package 2 width
15 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
1.374 KILOGRAM
Unit type of package 3
P06
Number of units in package 3
256
Package 3 height
60 CENTIMETER
Package 3 width
70 CENTIMETER
Package 3 length
80 CENTIMETER
Package 3 weight
26.984 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
