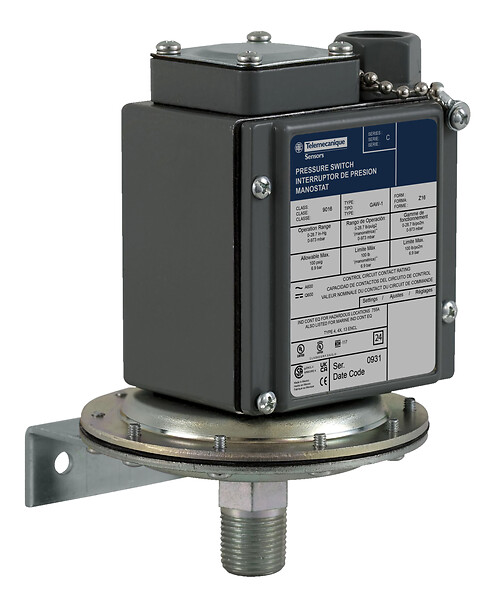

9016GAW1Z16
Electromechanical vacuum switch, 9016G, 9016 g, adjustable scale, 2 thresholds, Set 0 to 28.7 InHg
Commercialised
Expandir todo
Ficha de datos
Range of product
9016G
Product or component type
Electromechanical vacuum switch
Device application
Sensitive control application
Device short name
9016G
Electrical circuit type
Control circuit
Factory modification
Not applicable
Vacuum switch type of operation
Regulation between two thresholds
Scale type
Adjustable differential
Value of setting
Not applicable
Maximum pressure
100 psi
Local display
Without
Fluid connection type
0.50 inch - 14 NPT external with 0.25 inch - 18 NPTF internal conforming to UL 508
Electrical connection
Screw-clamp terminals AWG 22...AWG 12
Cable entry
0.5 inch NPT conduit entrance
Terminal block type
4 screw terminals
Pressure actuator
Diaphragm nitrile (Buna-N)
Controlled fluid
Air (-40-250 °F), water (-40-250 °F), hydraulic oil (-40-250 °F), gas (-40-250 °F)
Materials in contact with fluid
3M Scotch-Grip 847 rubber and gasket adhesive
nitrile (Buna-N)
zinc plated steel
nitrile (Buna-N)
zinc plated steel
Enclosure material
Die cast aluminium alloy 380
Operating position
Any position
Operating rate
120 cyc/mn
Local signalling
Without:
Contacts type and composition
NC-NO, SPDT, Form Z, snap action, silver nickel contacts
Setting
Internal
Standards
UL 508
Product certifications
CSA file LR25490
UL listed file E12158 CCN NKPZ and CCN NTHT
UL listed file E12158 CCN NKPZ and CCN NTHT
Protective treatment
None
Vibration resistance
2 gn conforming to IEC 68-2-6 (f = 40-150 Hz)
Shock resistance
50 gn conforming to IEC 58-2-27
NEMA degree of protection
NEMA 4/4X/13 conforming to UL 698
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
47.613 CENTIMETER
Package 1 width
18.745 CENTIMETER
Package 1 length
120.937 CENTIMETER
Package 1 weight
2.087 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
