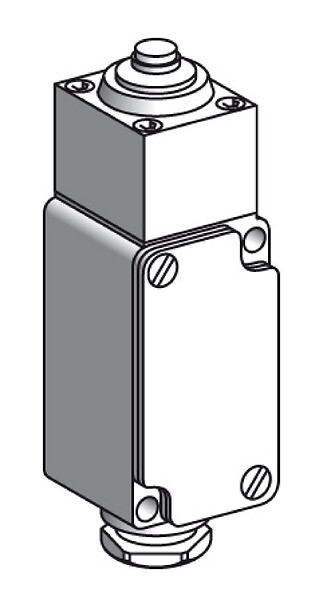

XC2JC161
Limit switch, Limit switches XC Standard, XC2 J, metal end plunger, 1 C/O
Commercialised
Expandir todo
Ficha de datos
Range of product
OsiSense XC
Series name
Special format
Product or component type
Limit switch
Product specific application
For severe applications
Device short name
XC2J
Body type
Fixed
Head type
Plunger head
Material
Metal
Movement of operating head
Linear
Type of operator
End plunger metal
Switch actuation
On end
Type of approach
Vertical approach, 1 direction
Contact operation
Snap action
Repeat accuracy
0.01 mm with 1 million operating cycles
Fixing mode
By the body
Electrical connection
Screw-clamp terminals, clamping capacity: 1 x 0.5...2 x 2.5 mm²
Cable entry
1 entry incorporating cable gland, cable outer diameter: 6-13.5 mm
Contacts insulation form
Za
Positive opening
Without
Contacts material
Silver plated contacts
Contact code designation
-
Resistance across terminals
25 MOhm conforming to IEC 60255-7 category 3, 25 MOhm conforming to NF C 93-050 method A
Terminals description ISO n°1
(13-14-11-12)OF
Shock resistance
25 gn for 18 ms conforming to IEC 60068-2-27
Vibration resistance
10 gn (f= 10-500 Hz) conforming to IEC 60068-2-6
IP degree of protection
IP65 conforming to IEC 60529, IP657 conforming to IEC 60529
IK degree of protection
IK08
Electrical shock protection class
Class I conforming to IEC 60536, class I conforming to NF C 20-030
Product certifications
CSA
DEMKO
NEMKO
DEMKO
NEMKO
Protective treatment
TC
Standards
CSA C22.2 No 14
IEC 60337-1
IEC 60947-5-1
UL 508
VDE 0660-200
IEC 60337-1
IEC 60947-5-1
UL 508
VDE 0660-200
Unit type of package 1
PCE
Number of units in package 1
1
Unit type of package 2
S01
Number of units in package 2
7
Package 2 height
15 CENTIMETER
Package 2 width
15 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
4.36 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Expandir todo
Dibujos tecnicos
Dimensions
- (1) Fixing from the rear: by 2 M5 screws. Depth of thread on switch: 10 mm.
- (2) Fixing from the front via 2 holes Ø 5.5.
Wiring Diagram
Single-pole CO Snap Action
Characteristics of Actuation
Switch Actuation on End

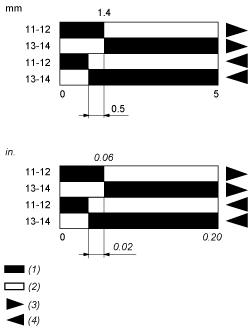

Functionnal Diagram
- (1) Closed
- (2) Open
- (3) Tripping
- (4) Resetting
