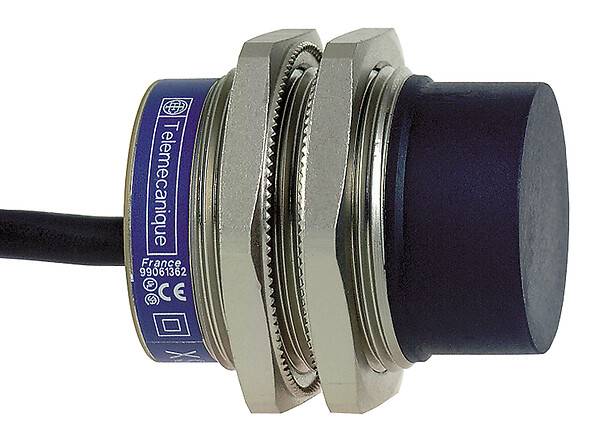

XS2N30PC410
Inductive sensor XS2 M30, L41mm, brass, Sn15mm, 12..24VDC, cable 2m
End of commercialisation Fecha de fin de comercialización : Fecha de fin del servicio :
XS2N30PC410 is replaced by the following product:
Quantity : 1
Expandir todo
Ficha de datos
Range of product
Telemecanique Inductive proximity sensors XS
Sensor type
Inductive proximity sensor
Sensor name
XS2
Series name
General purpose
Thread type
M30 x 1.5
Enclosure material
Nickel plated brass
Sensor design
Cylindrical M30
Electrical connection
Cable
Material
Metal
Cable composition
4 x 0.22 mm²
Body type
Fixed
Wiring technique
4-wire
Size
41 mm
Discrete output function
1 NO + 1 NC
Type of output signal
Discrete
Detector flush mounting acceptance
Non flush mountable
Front material
PPS
Discrete output type
PNP
IP degree of protection
IP68 double insulation conforming to IEC 60529
Output circuit type
DC
Delay response
0.3 MILLISECOND
[Us] rated supply voltage
12...24 V DC with reverse polarity protection
Switching capacity in mA
<= 200 mA with overload and short-circuit protection
Product certifications
CSA
UL
UL
Wire insulation material
PvR
Current consumption
0...10 mA no-load
Status LED
Output state: 1 LED (yellow)
Marking
CE
Detection face
Frontal
Voltage drop
<2 V (closed)
Sensing range
8...15 mm
Differential travel
1...15 % of Sr
Shock resistance
50 gn for 11 ms conforming to IEC 60068-2-27
Switching frequency
<= 1000 Hz
Delay first up
5 MILLISECOND
Delay recovery
0.7 MILLISECOND
Vibration resistance
25 gn amplitude = +/- 2 mm (f = 10-55 Hz) conforming to IEC 60068-2-6
Unit type of package 1
PCE
Number of units in package 1
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. Fo more information go to www.P65Warnings.ca.gov
