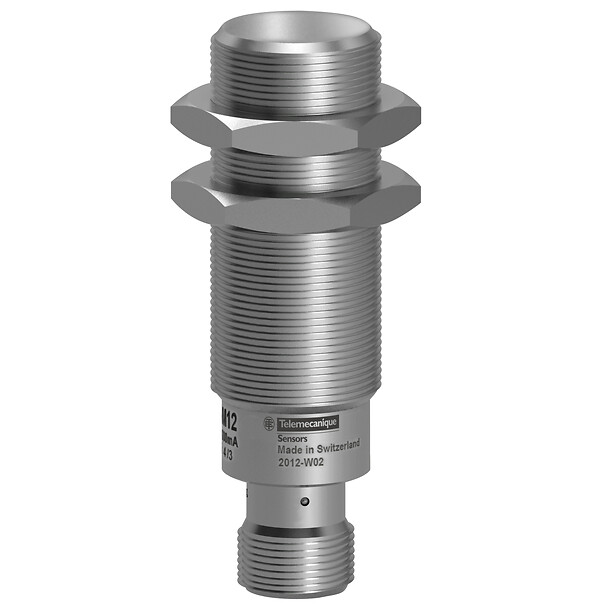

XS918RWPAM12
Inductive proximity sensors XS, inductive sensor XS9 M18, L64mm, full SS 303, Sn10 mm, 12...24 VDC, M12
Commercialised
Expandir todo
Ficha de datos
Range of product
Telemecanique Inductive proximity sensors XS
Series name
Application
Sensor type
Inductive proximity sensor
Sensor name
XS9
Device application
Welding machine
Sensor design
Cylindrical M18
Size
64 mm
Body type
Single piece body
Type of output signal
Discrete
Wiring technique
3-wire
Discrete output function
1 NO
Detector flush mounting acceptance
Flush mountable
Discrete output type
PNP
Material
Stainless steel 303
Electrical connection
Male connector M12, 4 pins
[Us] rated supply voltage
12...24 V DC with reverse polarity protection
Output circuit type
DC
Switching capacity in mA
<= 200 mA with overload and short-circuit protection
IP degree of protection
IP69K conforming to DIN 40050, IP68 conforming to IEC 60529
Enclosure material
Stainless steel 303
Detection face
Frontal
Thread type
M18 x 1
Front material
Stainless steel 303
Sensing range
8...15 mm
Differential travel
1...15 % of Sr
Repeat accuracy
<= 5 % of Sr
Residual current
0.1 mA open state
Status LED
Output state: 1 LED (yellow)
Switching frequency
<= 15 Hz
Voltage drop
<2 V (closed)
Current consumption
<= 10 mA no-load
Delay first up
80 MILLISECOND
Delay response
0.0001 MILLISECOND
Marking
CE
Delay recovery
0.015 MILLISECOND
Product certifications
cULus
Vibration resistance
25 gn amplitude = +/- 1 mm (f = 10-55 Hz) conforming to IEC 60068-2-6
Shock resistance
30 gn for 11 ms conforming to IEC 60068-2-27
Unit type of package 1
PCE
Number of units in package 1
1
Unit type of package 2
S01
Number of units in package 2
25
Package 2 height
15 CENTIMETER
Package 2 width
15 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
2.725 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Expandir todo
Dibujos tecnicos
Dimensions
