XT130B1PAL2

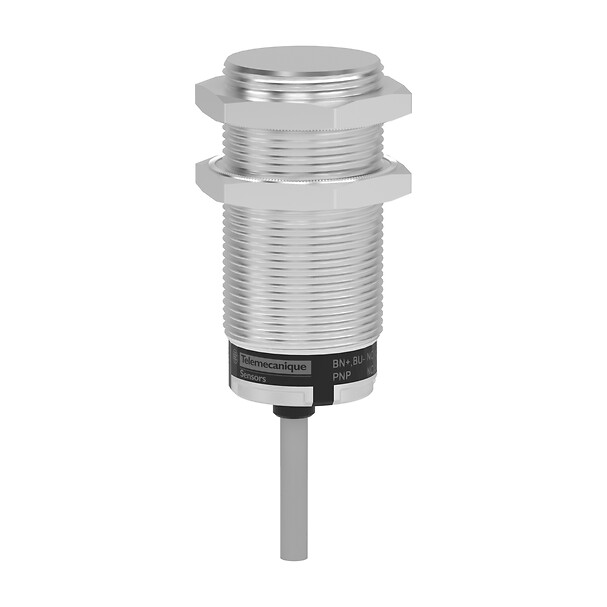

Capacitive sensor, XT, M30, brass, Sn 10 mm, PNP, NO, cable 2 m, 12...24 VDC, flush, 3 wires
END OF COMMERCIALISATION
XT130B1PAL2 is replaced by the following product:
Quantity : 1
Expandir todo
Ficha de datos
Sensor type
Capacitive proximity sensor
Product specific application
Detection of insulated or conductive materials
Sensor name
XT1
Sensor design
Cylindrical M30
Size
70 mm
Body type
Fixed
Detector flush mounting acceptance
Flush mountable
Material
Metal
Enclosure material
Nickel plated brass
Type of output signal
Discrete
Wiring technique
3-wire
Discrete output function
1 NO
Output circuit type
DC
Discrete output type
PNP
Electrical connection
Cable
[Us] rated supply voltage
24 V DC with reverse polarity protection
Delay response
5 MILLISECOND
IP degree of protection
IP67 conforming to IEC 60529, IP67 conforming to IEC 60947-5-2
ISO thread
M30 x 1.5
Detection face
Frontal
Differential travel
< 0.2 x Sr
Repeat accuracy
< 0.1 x Sr
Wire insulation material
PVC
Status LED
Output state indication: 1 LED (yellow)
Residual current
0.1 mA open state
Protection type
Short-circuit protection
Switching frequency
<= 150 Hz
Voltage drop
<2 V (closed)
Current consumption
< 15 mA
Delay first up
30 MILLISECOND
Delay recovery
5 MILLISECOND
Marking
CE
Setting-up
Sensitivity by potentiometer
Standards
IEC 60947-5-2
Product certifications
CETLus
Vibration resistance
10 gn amplitude = 1 mm (f = 10-55 Hz) conforming to IEC 60068-2-6
Shock resistance
30 gn for 11 ms conforming to IEC 60068-2-27
Unit type of package 1
PCE
Number of units in package 1
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
