XZCP1965L5

Pre wired connectors XZ, elbowed female, 1/2"20 UNF, 3 pins, cable PUR 5 m

arrow

COMMERCIALISED

Descargar hoja de datos en pdf Descargar archivo CAD 3D Encontrar un distribuidor

Expandir todo

Ficha de datos

Accessory / separate part type
Pre-wired connectors
Accessory / separate part category
Cabling accessory
Electrical connection
Elbowed female connector 1/2"20 UNF, 3 pins
Cable composition
3 x 0.34 mm²
Collar material
Metal
IP degree of protection
IP67
Product certifications
cULus
[Ue] rated operational voltage
250 V AC, 300 V DC
Wire insulation material
PUR
Insulating resistance
1 GIGAOHM
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
3.8 CENTIMETER
Package 1 width
24 CENTIMETER
Package 1 length
28.5 CENTIMETER
Package 1 weight
0.134 KILOGRAM
Unit type of package 2
S02
Number of units in package 2
20
Package 2 height
15 CENTIMETER
Package 2 width
30 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
3.03 KILOGRAM
Unit type of package 3
P06
Number of units in package 3
320
Package 3 height
77 CENTIMETER
Package 3 width
80 CENTIMETER
Package 3 length
60 CENTIMETER
Package 3 weight
56.98 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Expandir todo

Dibujos tecnicos

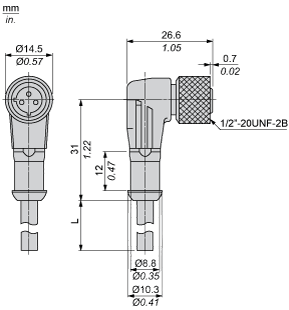

Dimensions

epds
  • L : Length of cable

Connections and Schemes

Connectors

epds
  • GN : Green
  • RD/WH : Red / White
  • RD/BK : Red / Black
