XZCPV0941L10

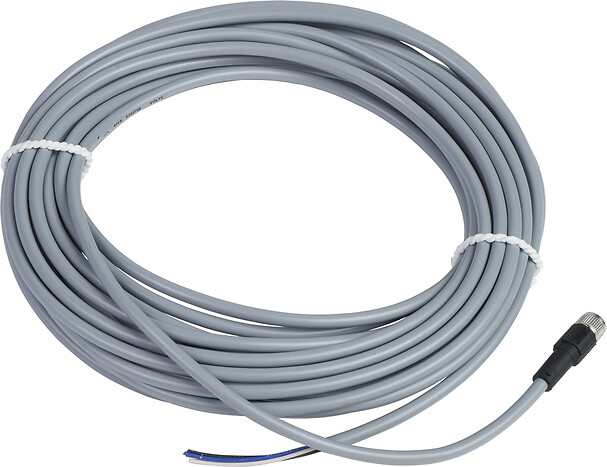

Pre wired connectors XZ, straight female, M8, 4 pins, cable PVC 10 m
Commercialised
Expandir todo
Ficha de datos
Accessory / separate part category
Cabling accessory
Accessory / separate part type
Pre-wired connectors
Electrical connection
Straight female connector M8, 4 pins
Collar material
Metal
Cable composition
4 x 0.25 mm²
Wire insulation material
PVC
[Ue] rated operational voltage
60 V AC, 75 V DC
Insulating resistance
1 GIGAOHM
IP degree of protection
IP65
IP67
IP67
Product certifications
cULus
Unit type of package 1
PCE
Number of units in package 1
1
Unit type of package 2
S02
Number of units in package 2
10
Package 2 height
15 CENTIMETER
Package 2 width
30 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
6.552 KILOGRAM
Unit type of package 3
P06
Number of units in package 3
160
Package 3 height
75 CENTIMETER
Package 3 width
60 CENTIMETER
Package 3 length
80 CENTIMETER
Package 3 weight
64.58 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Expandir todo
Dibujos tecnicos
Dimensions
- L : Length of cable
Connections and Schemes
Connector
- BN : Brown
- BK : Black
- BU : Blue
- WH : White
