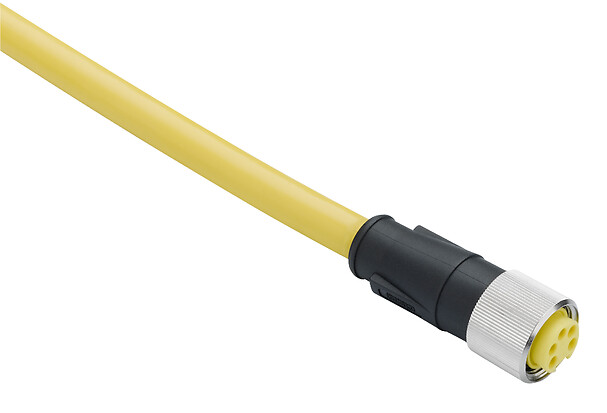

XZCPY1764L5
Pre-wired connectors XZ - straight female - 7/8" - 5 pins - cable PVC 5m
End of commercialisation Fecha de fin de comercialización : Fecha de fin del servicio :
Expandir todo
Ficha de datos
Accessory / separate part category
Cabling accessory
Accessory / separate part type
Pre-wired connectors
Electrical connection
Straight female connector 7/8", 5 pins
Collar material
Metal
Cable composition
5 x 1.5 mm²
Wire insulation material
PVC
[Ue] rated operational voltage
600 V AC, 600 V DC
Insulating resistance
1 GIGAOHM
IP degree of protection
IP67
Product certifications
cULus
Unit type of package 1
PCE
Number of units in package 1
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Expandir todo
Dibujos tecnicos
Dimensions
- L : Length of cable
Connections and Schemes
Connectors
- RD : Red
- WH : White
- BK : Black
- GN : Green
- OR : Orange
