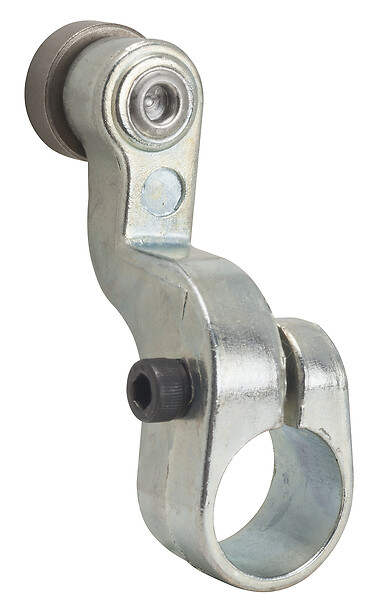

9007E6
LIMIT SWITCH LEVER ARM T+FT+OPTIONS
Commercialised
Expand all
Datasheet
Range of product
9007
Series name
Severe duty
Product or component type
Limit switch lever
Device short name
9007T/FT
Movement of operating head
Rotary
Type of operator
Cast zinc spring return roller lever length: 1.88-1.88 in - offset: 0.75 in -
Type of roller
1 steel outside offset roller diameter: 1.38 in - width: 0.25 in
Type of approach
Lateral approach
Positive opening
Without
Switch actuation
By 30° cam
Environmental characteristic
Standard environment
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
4.064 CENTIMETER
Package 1 width
3.556 CENTIMETER
Package 1 length
8.128 CENTIMETER
Package 1 weight
0.1225 KILOGRAM
Unit type of package 2
S02
Number of units in package 2
50
Package 2 height
15 CENTIMETER
Package 2 width
30 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
6.555 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. Fo more information go to www.P65Warnings.ca.gov
