9016GVG1J99FR

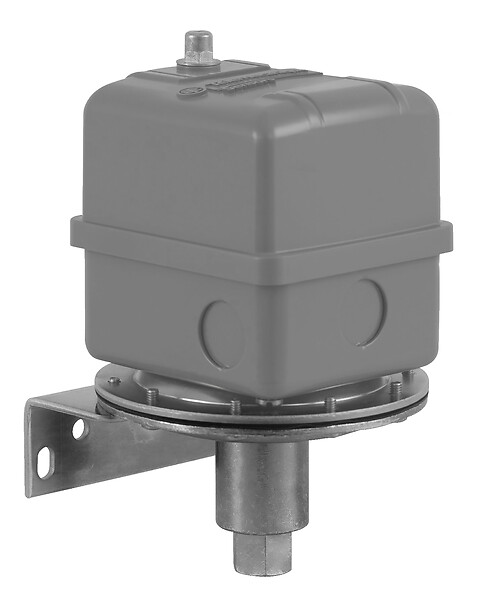

Vacuum switch 9016G - adjustable scale - 2 thresholds - 25 inHg factory setting
End of commercialisation End of commercialization date : End of service date :
Expand all
Datasheet
Range of product
9016GVG
Product or component type
Electromechanical vacuum switch
Device application
Power circuit application
Device short name
9016GVG
Electrical circuit type
Power circuit
Factory modification
With mounting bracket
Vacuum switch type of operation
Regulation between two thresholds
Scale type
Adjustable
Value of setting
Specify factory setting
Maximum pressure
100 psi
Local display
Without
Fluid connection type
0.25 inch 18 NPSF conforming to UL 508
Electrical connection
Screw-clamp terminals AWG 22...AWG 12
Terminal block type
8 screw terminals
Pressure actuator
Diaphragm nitrile (Buna-N)
Controlled fluid
Air (-40-250 °F), water (-40-250 °F), hydraulic oil (-40-250 °F), gas (-40-250 °F)
Materials in contact with fluid
3M Scotch-Grip 847 rubber and gasket adhesive
nitrile (Buna-N)
zinc plated steel
nitrile (Buna-N)
zinc plated steel
Cover material
Polypropylene, noryl thermoplastic resin or equivalent
Operating position
Any position
Enclosure material
Stamped metal
Operating rate
100 cyc/mn
Repeat accuracy
0.025
Contacts type and composition
2 NO, DPST-DB, Form XX, snap action, silver cadmium contacts
Setting
Internal
Standards
UL 508
Product certifications
CSA
UL listed
UL listed
Protective treatment
None
NEMA degree of protection
NEMA 1 conforming to UL 698
Unit type of package 1
PCE
Number of units in package 1
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
