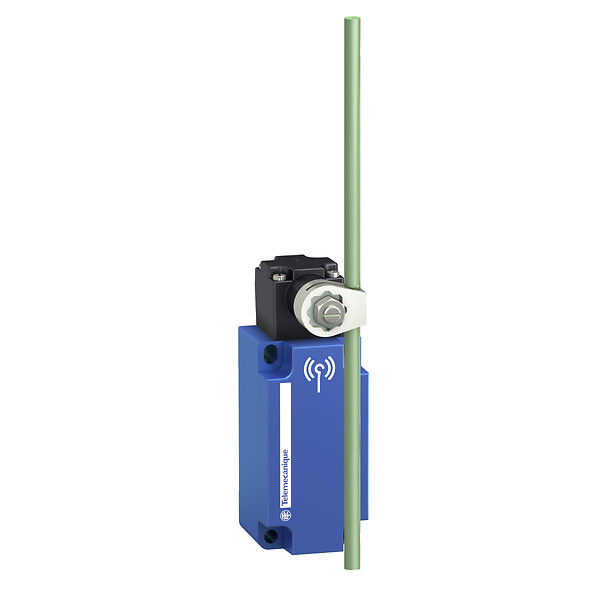

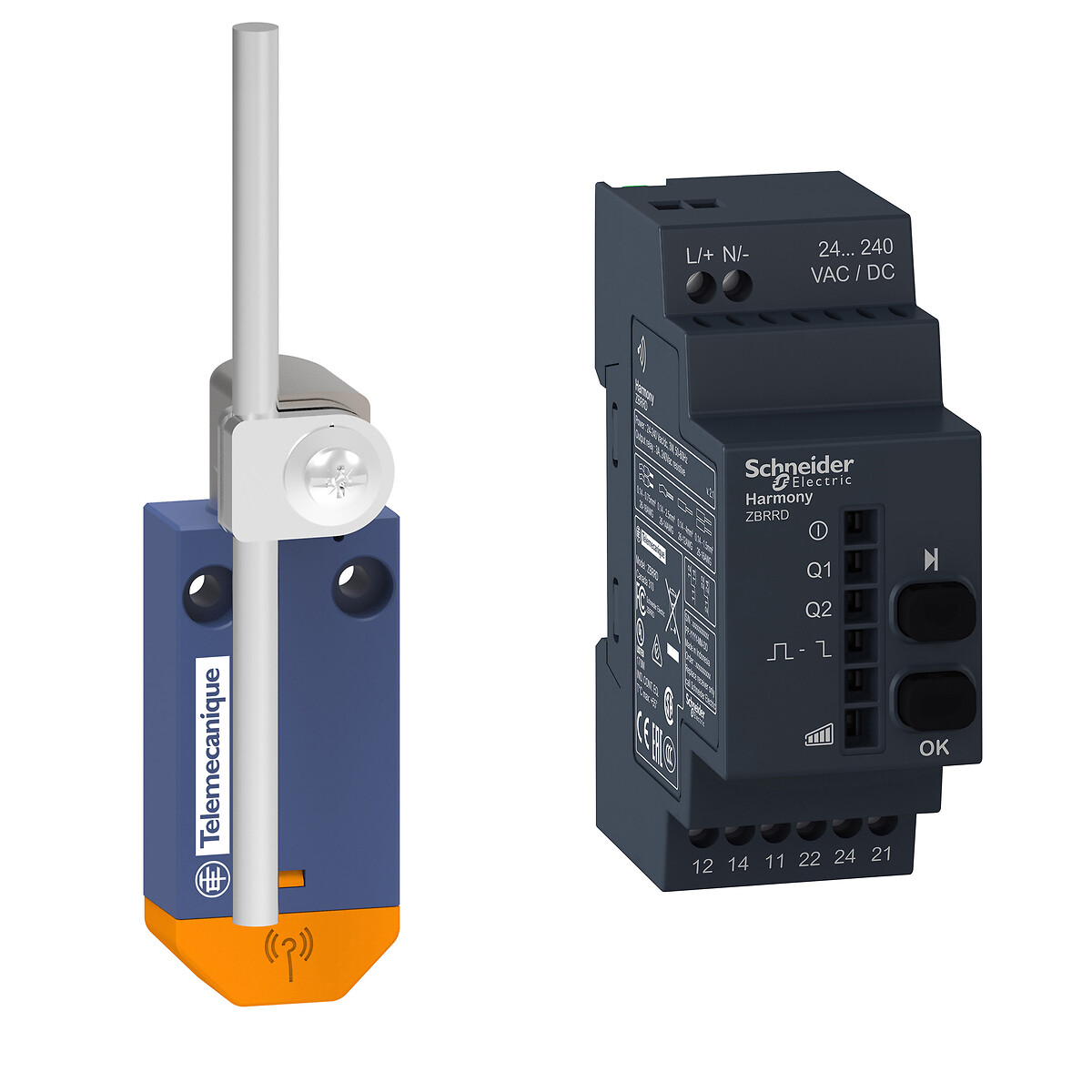

XCKW159
Wireless limit switch, Limit switches XC Standard, XCKW, plastic round rod lever 6 mm
End of commercialisation End of commercialization date : June 30th 2021 End of service date : June 30th 2021
XCKW159 is replaced by the following product:
Quantity : 1
Expand all
Datasheet
Range of product
Telemecanique Limit switches XC Standard
Series name
Standard format
Product or component type
Wireless limit switch
Device short name
XCKW
Body type
Fixed
Head type
Rotary head
Body material
Plastic
Head material
Plastic
Lever material
Metal
Fixing mode
By 4 screws
Type of operator
Spring return round rod lever thermoplastic round rod 6 mm, L = 200 mm
Switch actuation
By any moving part
Type of approach
Lateral approach, 1 or 2 programmable direction
Communication network type
ZigBee green power - 2.4 GHz conforming to IEEE 802.15.4
Electrical composition code
PW1
Response time
<= 2 ms
Contact operation
Snap action
Operating rate
60 CYCLE_PER_MINUTE
Switching operation per year
3600
Electromagnetic compatibility
Radiated emission, immunity for industrial environments, susceptibility to electromagnetic fields - test level: 3 V/m (80...2700 MHz, distance = 20 m), susceptibility to electromagnetic fields - test level: 10 V/m (80...2000 MHz), electrostatic discharge immunity test - test level: 6 kV (on contact (on metal parts)), electrostatic discharge immunity test - test level: 8 kV (in free air (in insulating parts))
Shock resistance
50 gn for 11 ms conforming to IEC 60068-2-27
Vibration resistance
+/- 10 mm (f= 2-11 Hz) conforming to IEC 60068-2-6, 25 gn (f= 10-500 Hz) conforming to IEC 60068-2-6
IP degree of protection
IP67 conforming to IEC 60529, IP66 conforming to IEC 60529
IK degree of protection
IK05 conforming to IEC 62262
Radio agreement
IC conforming to RSS, FCC conforming to RCM
Directives
1999/5/EC - R&TTE directive
2004/108/EC - electromagnetic compatibility
2004/108/EC - electromagnetic compatibility
Standards
IEC 60947-1
IEC 60947-5-1
IEC 60947-5-1
Unit type of package 1
PCE
Number of units in package 1
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Expand all
Technical Drawings

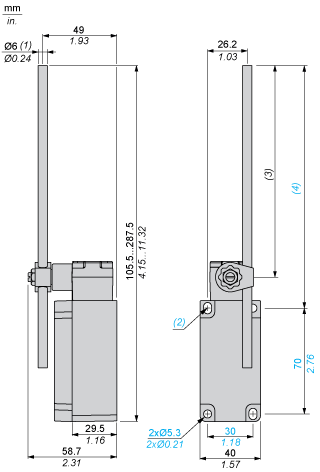

Dimensions
- (1) Rod length : 200 mm / 7.87 in.
- (2) 2 elongated holes 5.3 x 7.3 mm / 0.21 x 0.29 in.
- (3) 190 mm / 7.48 in. maximum
- (4) 213.5 mm / 8.41 in.maximum
Mounting
Head Orientation
- (1) PZ1, pozidriv screwdriver, size 1
- C : 1 Nm (± 20 %) / 8.85 Ib-in (± 20 %)
Mounting
Actuator Direction Setting
- (1) PZ1, pozidriv screwdriver, size 1
- C : 1 Nm (± 20 %) / 8.85 Ib-in (± 20 %)
Mounting
Characteristics of Actuation
Technical Description
Functionnal Diagram, Travel Distance
- (1) Reset
