XSAN01122

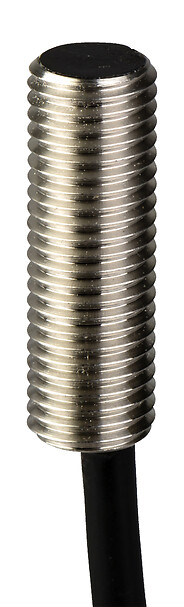

Inductive proximity sensors XS, inductive sensor Namur, cylindrical M18, cable 2 m
End of commercialisation End of commercialization date : End of service date :
XSAN01122 is replaced by the following product:
XS508BSCBL2
Inductive proximity sensors XS, inductive sensor XS5 M8, L33mm, brass, Sn1.5 mm, 12...24 VDC, cable 2 m
Quantity : 1
Expand all
Datasheet
Range of product
Telemecanique Inductive proximity sensors XS
Series name
Application
Product or component type
Sensor
Sensor type
Inductive proximity sensor
Sensor name
XSA
Device application
Not applicable
Sensor design
Cylindrical M18
Size
81 mm
Body type
Fixed
Type of output signal
Discrete
Wiring technique
2-wire
Discrete output function
1 NC
Detector flush mounting acceptance
Flush mountable
Discrete output type
Namur
Material
Metal
Electrical connection
Cable
[Us] rated supply voltage
7 V DC
Output circuit type
DC
IP degree of protection
IP67 conforming to IEC 60529
Enclosure material
Nickel plated brass
Detection face
Frontal
Thread type
M18 x 1
Front material
PPS
Sensing range
8...15 mm
Differential travel
3...15% of Fr
Repeat accuracy
<= 3% of Sr
Status LED
Output state: 1 LED (red)
Wire insulation material
PVC
Switching frequency
<= 1500 Hz
Voltage drop
<1.8 V (closed)
Marking
CE
Product certifications
CCC
CSA
CSA
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
4.1 CENTIMETER
Package 1 width
9.5 CENTIMETER
Package 1 length
13 CENTIMETER
Package 1 weight
69 GRAM
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
