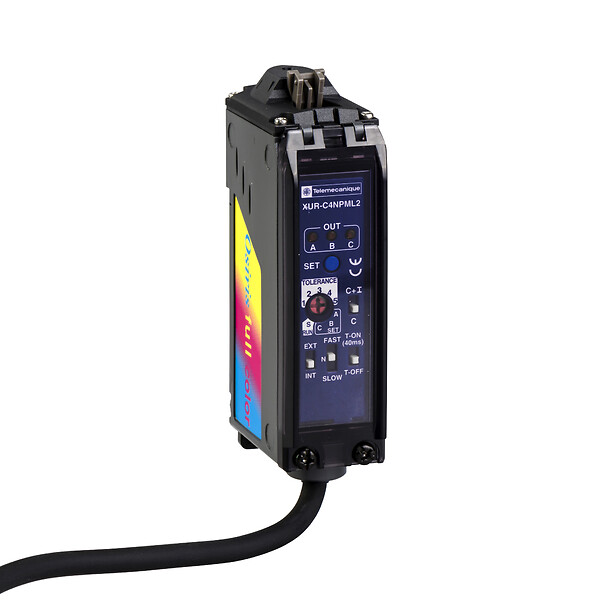

XURC4NPML2
Photoelectric sensors XU, XUR, ampli for fibre, color, 12...24 VDC, cable 2 m
END OF COMMERCIALISATION
XURC4NPML2 is replaced by the following product:
Quantity : 1
Expand all
Datasheet
Range of product
Telemecanique Photoelectric sensors XU
Series name
Application packaging
Electronic sensor type
Photo-electric sensor
Sensor name
XUR
Sensor design
Compact, fiber design
Detection system
Thru beam or diffuse depending on fiber optic
Material
Metal
Type of output signal
Discrete
Wiring technique
3-wire
Supply circuit type
DC
Discrete output type
NPN
Discrete output function
1 NO
Emission
-
Electrical connection
Cable
Product specific application
Colour
Enclosure material
Aluminium
Lens material
Glass
Output type
Solid state
Cover material
Polyacrylate
Cable composition
7 x 0.2 mm²
Status LED
-
[Us] rated supply voltage
-
Switching capacity in mA
-
Current consumption
<= 150 mA no-load
Time delay range
40 ms on failing edge programmable by switch delay
Maximum voltage drop
-
Switching time
-
Setting-up
Operating mode
sensitivity adjustment with teach mode
tolerance level
sensitivity adjustment with teach mode
tolerance level
Vibration resistance
7 gn, amplitude = +/- 0.75 mm (f = 10-55 Hz)on the 3 axes during 2 hours conforming to IEC 60068-2-6
IP degree of protection
-
Shock resistance
50 gn for 5 shocks on each axis conforming to IEC 60068-2-27
Package 1 height
8 CENTIMETER
Package 1 width
13.2 CENTIMETER
Package 1 length
6.5 CENTIMETER
Package 1 weight
270 GRAM
Unit type of package 1
PCE
Number of units in package 1
1
