XUVU06M3KCNM8

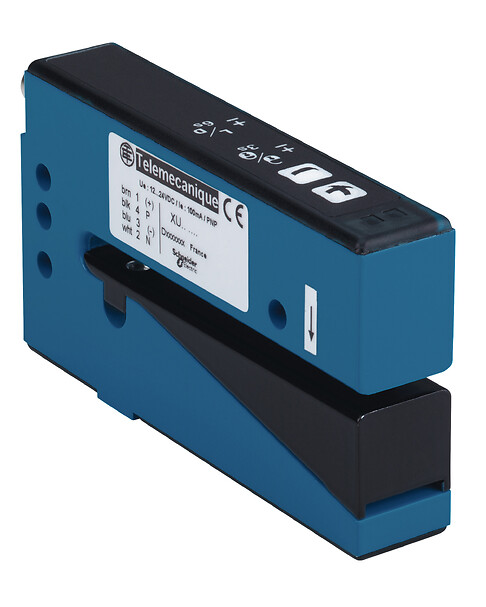

Ultrasonic fork sensor opening 60x3mm - 12..24 V DC - PNP/NPN NO/NC connect M8
End of commercialisation End of commercialization date : January 12th 2022 End of service date : January 12th 2022
XUVU06M3KCNM8 is replaced by the following product:
XUVU06M3KSNM8
Photoelectric sensors XU, ultrasonic sensor label fork 60x3, 12...24 V DC, PNP/NPN NO/NC connect M8
Quantity : 1
Expand all
Datasheet
Range of product
Telemecanique Photoelectric sensors XU
Series name
Application packaging
Electronic sensor type
Photo-electric sensor
Sensor name
XUV
Sensor design
Fork
Detection system
Thru beam
Material
Metal
Type of setting
Without
Type of output signal
Discrete
Wiring technique
4-wire
Supply circuit type
DC
Discrete output type
PNP and NPN
Discrete output function
2 NO/NC programmable
Emission
Ultrasonic
Electrical connection
1 male connector M8, 4 pins
Product specific application
Detection of transparent labels
Enclosure material
Zinc alloy
Lens material
PC
Output type
Solid state
Accuracy
+/- 0.16 mm at 60 m/min, +/- 0.30 mm at 120 m/min
Status LED
Output state: 1 LED (yellow), adjustment mode and keypad locking: 1 LED (red)
Label length
2 MILLIMETER
[Us] rated supply voltage
12...24 V DC with reverse polarity protection
Distance between labels
2 MILLIMETER
Passing speed of object
120 METER_PER_MINUTE
Switching capacity in mA
<= 100 mA (overload and short-circuit protection)
Maximum voltage drop
-
Delay response
0.5 MILLISECOND
Setting-up
Numeric potentiometer
Vibration resistance
7 gn, amplitude = +/- 1.5 mm (f = 10-55 Hz) conforming to IEC 60068-2-6
IP degree of protection
IP65 conforming to IEC 60529
Shock resistance
30 gn (duration = 11 ms) conforming to IEC 60068-2-27
Unit type of package 1
PCE
Number of units in package 1
1
