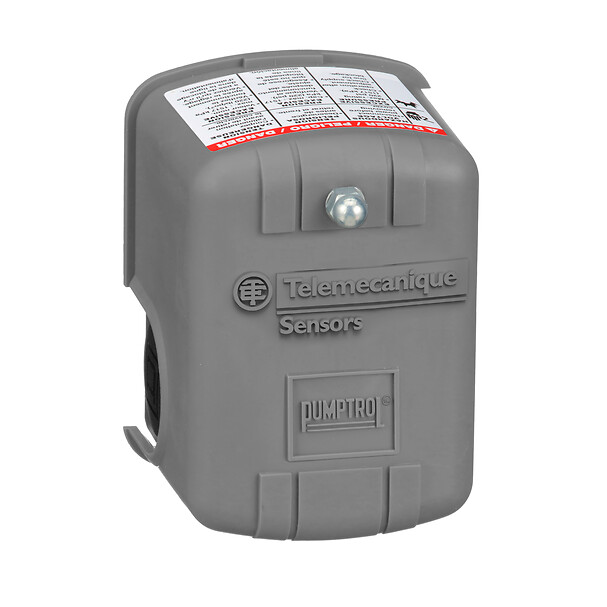

9013FSG2J21M4
Pumptrol, water pump switch 9013FS, adjustable diff., 30 50 PSI
Commercialised
Expandir todo
Ficha de datos
Range of product
Pumptrol
Pressure sensor name
9013FS
Value of setting
30...50 psi
Electrical circuit type
Power circuit
Product specific application
Control electrically driven water pumps
Quantity per set
1
Type of packing
Individual
Pressure sensor type
Electromechanical pressure switch
Controlled fluid
Fresh water (32-158 °F)
Pressure actuator
Diaphragm
Pressure switch type of operation
Regulation between 2 thresholds
Scale type
Adjustable differential
Setting
Internal
Local display
Without
Contacts type and composition
2 NC, snap action, DPST-DB, Form YY
Electrical connection
Screw-clamp terminals, clamping capacity: 10 AWG, screw-clamp terminals, clamping capacity: 5.261 mm²
Fluid connection type
0.25 inch NPSF internal conforming to UL 508
Materials in contact with fluid
Zinc plated steel or equivalent flange, nitrile (Buna-N) or equivalent rubber diaphragm
Material
Polypropylene: cover, noryl thermoplastic resin or equivalent: cover
Operating position
Any position
Terminal block type
4 terminals
Operating rate
10 CYCLE_PER_MINUTE
Repeat accuracy
+/- 3 %
Terminals description ISO n°1
L1-T1
L2-T2
L2-T2
Factory modification
Low pressure cut-off (AUTO-START-OFF) operates roughly 10 PSIG below cut-in
Standards
CE
NSF ANSI 61 Annex G
UL 508
NSF ANSI 61 Annex G
UL 508
Protective treatment
None
Product certifications
CSA
UL listed
UL listed
NEMA degree of protection
NEMA 1 conforming to UL 50
IP degree of protection
IP20 conforming to IEC 60529
Unit type of package 1
PCE
Number of units in package 1
1
Package 2 height
10.16 CENTIMETER
Package 2 width
10 CENTIMETER
Package 2 length
11.43 CENTIMETER
Package 2 weight
381.018 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
