L100WNSL2M29

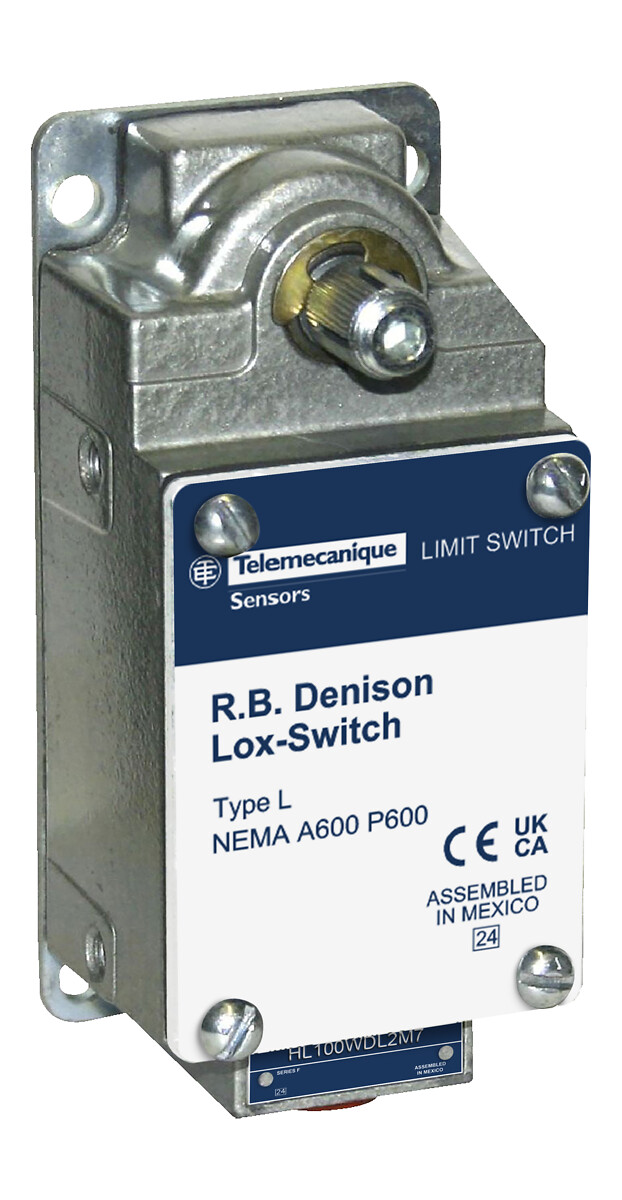

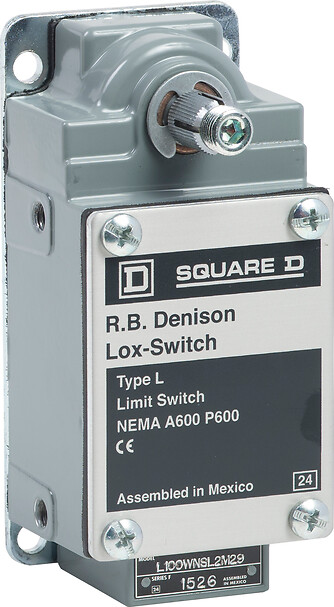

Limit switch, L100/300, 600 V 10amp type l +options

arrow

Commercialised

Descargar hoja de datos en pdf Descargar archivo CAD 3D Encontrar un distribuidor

Expandir todo

Ficha de datos

Range of product
L100/300
Series name
Severe duty mill
Product or component type
Limit switch
Product specific application
Mill switch
Device short name
L100
L300
Body type
Fixed
Head type
Rotary head
Base plate style
Style 2
Body material
Cast aluminium
Fixing mode
By the body
Type of operator
spring return without operating lever
Function available
Neutral position
Switch actuation
CW and CCW
from left or right
Type of approach
Lateral approach
Electrical connection
Screw-clamp terminals AWG 22...AWG 12
Cable entry
1 entry for 1/2" - 14 NPT conforming to ANSI B1.20.1
Contacts type and composition
2 NO
CW operation contacts
1 NC + 1 NO
CCW operation contacts
1 NC + 1 NO
Contacts style
D
Switch function
DPST-NO-DB
Contact form
Form XX
Contacts material
90/10 AgCdO on copper backing stationary contact, silver on steel backing moveable contact
Contacts usage
Maintained CW only
Contact operation
Snap action
Positive opening
Without
Repeat accuracy
+/- 0.03 %
Contact code designation
A600, AC (Ue = 600 V) Ie = 5 A conforming to NEMA rating designation, A600, AC (Ue = 480 V) Ie = 6.25 A conforming to NEMA rating designation, A600, AC (Ue = 240 V) Ie = 12.5 A conforming to NEMA rating designation, A600, AC (Ue = 120 V) Ie = 20 A conforming to NEMA rating designation, P600, DC (Ue = 600 V) Ie = 0.2 A conforming to NEMA rating designation, P600, DC (Ue = 250 V) Ie = 1 A conforming to NEMA rating designation, P600, DC (Ue = 120 V) Ie = 5 A conforming to NEMA rating designation
Terminals description ISO n°1
(1-2) left side contact
(3-4) right side contact
Shock resistance
30 gn for 9 ms conforming to IEC 60068-2-27
Vibration resistance
10 gn (f= 10-55 Hz) conforming to IEC 60068-2-6
NEMA degree of protection
NEMA 1 conforming to Nema type 250, NEMA 2 conforming to Nema type 250, NEMA 4 conforming to Nema type 250, NEMA 12 conforming to Nema type 250, NEMA 13 conforming to Nema type 250
IP degree of protection
IP67 conforming to IEC 60529
Electrical shock protection class
Class 0 conforming to IEC 61140
Protective treatment
Corrosion resistant gray paint
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
5.842 CENTIMETER
Package 1 width
7.112 CENTIMETER
Package 1 length
12.954 CENTIMETER
Package 1 weight
680.389 GRAM
Unit type of package 2
S02
Number of units in package 2
8
Package 2 height
15 CENTIMETER
Package 2 width
30 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
5.911 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
