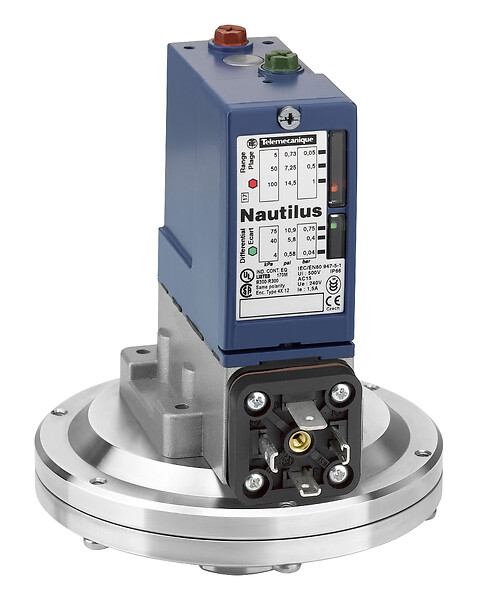

XMLBL35S2C13
Pressure sensor XMLB 0.35 bar -adjustable scale 2 threshold - 1C/O -with display
End of commercialisation Fecha de fin de comercialización : Fecha de fin del servicio :
Expandir todo
Ficha de datos
Range of product
Telemecanique Pressure sensors XM
Product or component type
Electromechanical pressure sensor
Pressure sensor type
Electromechanical pressure sensor
Device short name
XMLB
Fluid connection type
1/4" - 18 NPTF (female)
Electrical connection
1 male connector EN 175301-803-A (ex DIN43650), 4 pins
Electrical circuit type
Control circuit
Pressure switch type of operation
Regulation between 2 thresholds
Contacts type and composition
1 C/O
Product specific application
Not applicable
Materials in contact with fluid
316L stainless steel
PTFE
PTFE
Pressure actuator
Diaphragm
Scale type
Adjustable differential
Controlled fluid
Corrosive fluid (0-160 °C), fresh water (0-160 °C)
Local display
With
Enclosure material
Zinc alloy
Terminal block type
4 terminals
Operating rate
120 cyc/mn
Setting
External
Auxiliary contacts operation
Snap action
Contacts material
Silver contacts
Resistance across terminals
25 mOhm conforming to IEC 255-7 category 3, 25 mOhm conforming to NF C 93-050 method A
Terminals description ISO n°1
(13-14-11-12)OF
Operating position
Any position
Standards
CE
CSA C22.2 No 14
IEC 60947-5-1
UL 508
CSA C22.2 No 14
IEC 60947-5-1
UL 508
Product certifications
BV
CCC
CSA
LROS (Lloyds register of shipping)
UL
CCC
CSA
LROS (Lloyds register of shipping)
UL
Protective treatment
TC standard version
IP degree of protection
IP65 conforming to IEC 60529
Vibration resistance
2 gn conforming to IEC 60068-2-6 (f = 30-500 Hz)
Shock resistance
30 gn conforming to IEC 60068-2-27
Electrical shock protection class
Class I conforming to IEC 1140, class I conforming to IEC 536, class I conforming to NF C 20-030
Unit type of package 1
PCE
Number of units in package 1
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. Fo more information go to www.P65Warnings.ca.gov
