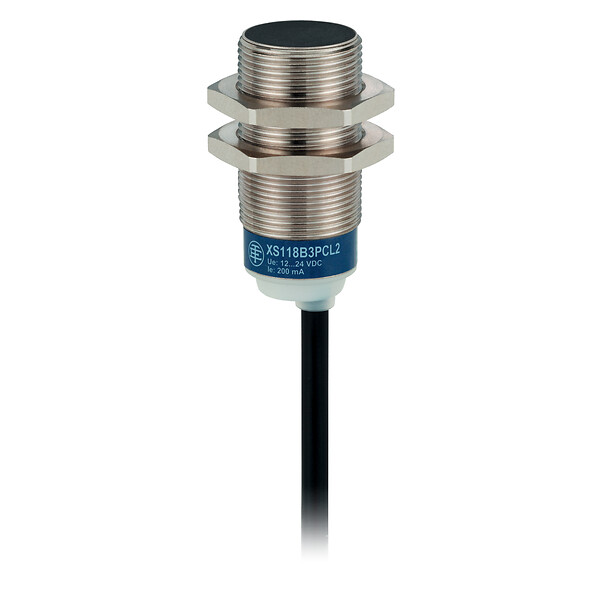

XS118B3PCL2
inductive sensor XS1 M18, PNP NO+NC, Flush, Sn8mm, 12..24VDC, cable 2 m
COMMERCIALISED
Expandir todo
Ficha de datos
Range of product
Telemecanique Inductive proximity sensors XS
Series name
General purpose
Sensor type
Inductive proximity sensor
Sensor name
XS1
Device application
Mobile equipment
Sensor design
Cylindrical M18
Size
40 mm
Body type
Fixed
Type of output signal
Discrete
Wiring technique
4-wire
Discrete output function
1 NO + 1 NC
Detector flush mounting acceptance
Flush mountable
Discrete output type
PNP
Material
Metal
Electrical connection
Cable
[Us] rated supply voltage
12...24 V DC with reverse polarity protection
Output circuit type
DC
Switching capacity in mA
<= 200 mA with overload and short-circuit protection
IP degree of protection
IP68 conforming to IEC 60529, IP65
Enclosure material
Nickel plated brass
Detection face
Frontal
Thread type
M18 x 1
Front material
PPS
Sensing range
8...15 mm
Differential travel
1...15 % of Sr
Cable composition
4 x 0.22 mm²
Status LED
Output state: 1 LED (yellow)
Wire insulation material
PVC
Switching frequency
<= 1000 Hz
Voltage drop
<2 V (closed)
Current consumption
0...10 mA no-load
Delay first up
5 MILLISECOND
Delay response
0.15 MILLISECOND
Marking
CE
Delay recovery
0.35 MILLISECOND
Product certifications
CSA
E2
UL
E2
UL
Vibration resistance
25 gn amplitude = +/- 2 mm (f = 10-55 Hz) conforming to IEC 60068-2-6
Shock resistance
50 gn for 11 ms conforming to IEC 60068-2-27
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
4.9 CENTIMETER
Package 1 width
13.7 CENTIMETER
Package 1 length
14.2 CENTIMETER
Package 1 weight
0.099 KILOGRAM
Unit type of package 2
S02
Number of units in package 2
22
Package 2 height
15 CENTIMETER
Package 2 width
30 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
2.504 KILOGRAM
Unit type of package 3
CAR
Number of units in package 3
1
Package 3 height
13 CENTIMETER
Package 3 width
4.1 CENTIMETER
Package 3 length
9.4 CENTIMETER
Package 3 weight
0.116 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Expandir todo
Dibujos tecnicos
Dimensions
- (1) LED
Minimum Mounting Distances
- e (1) ≥ 16 mm/0.63 in.
- e (1) ≥ 16 mm/0.63 in.
- e (2) ≥ 100 mm/3.94 in.
- e (1) ≥ 16 mm/0.63 in.
- e (2) ≥ 100 mm/3.94 in.
- e (3) ≥ 25 mm/0.98 in.
Wiring Schemes
- BU : Blue
- BN : Brown
- BK : Black
- WH : White
Performance Curves
Standard Steel Target : 24x24x1 mm
- (1) Pick-up points
- (2) Drop-out points (object approaching from the side)
- (y) Sensing distance in mm
