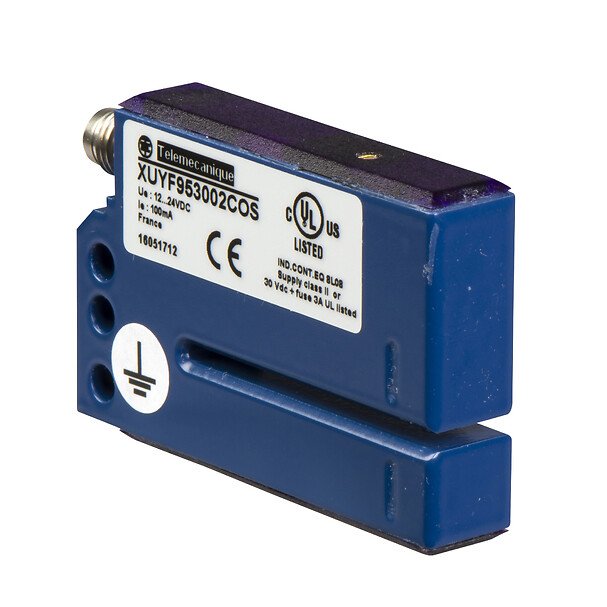

XUYF953002COS

Photoelectric sensors XU, XUY, fork, 2X40mm, 12...24 VDC, M8

arrow

Commercialised

Expandir todo

Ficha de datos

Range of product
Telemecanique Photoelectric sensors XU
Series name
Application
Electronic sensor type
Photo-electric sensor
Sensor name
XUY
Sensor design
Fork
Detection system
Thru beam
Material
Metal
Emission
Infrared, continuous
Type of output signal
Discrete
Wiring technique
4-wire
Supply circuit type
DC
Discrete output type
PNP/NPN
Electrical connection
1 male connector M8, 4 pins
Product specific application
Control of tools travel
detection of marks on a translucent film
detection of sheets overlapping
detection on a labelling machine
lateral shift control of a belt
lift cage position control
Enclosure material
Painted aluminium strong housing
Output type
Solid state
[Us] rated supply voltage
12...24 V DC with reverse polarity protection
Voltage drop
<1 V at 10 mA (closed state), <2 V at 100 mA (closed state)
Switching capacity in mA
100 mA (overload and short-circuit protection)
Maximum delay recovery
-
Current consumption
40 mA no-load
IP degree of protection
IP65 conforming to IEC 60529
Package 1 height
3.4 CENTIMETER
Package 1 width
7.4 CENTIMETER
Package 1 length
13 CENTIMETER
Package 1 weight
0.055 KILOGRAM
Unit type of package 2
S01
Number of units in package 2
15
Package 2 height
15 CENTIMETER
Package 2 width
15 CENTIMETER
Unit type of package 1
PCE
Package 2 length
40 CENTIMETER
Number of units in package 1
1
Package 2 weight
0.996 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
