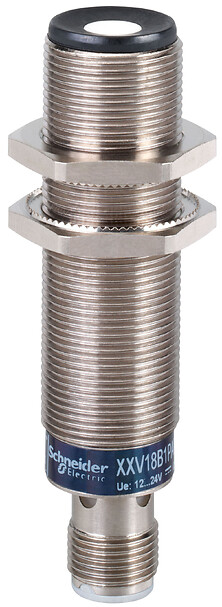

XXV18B1NAM12
Ultrasonic sensors XX, ultrasonic sensor, M18 metal, Sn 50 mm, NPN NO, M12
END OF COMMERCIALISATION
Expandir todo
Ficha de datos
Range of product
Telemecanique Ultrasonic sensors XX
Sensor type
Ultrasonic sensor
Series name
General purpose
Sensor name
XXV
Sensor design
Cylindrical M18
Detection system
Diffuse
Material
Metal
Type of output signal
Discrete
Discrete output function
1 NO
Wiring technique
3-wire
[Us] rated supply voltage
12...24 V DC with reverse polarity protection
Discrete output type
NPN
Electrical connection
Male connector M12 4 pins
Enclosure material
Brass
Front material
Epoxy
Thread type
M18 x 1
Voltage drop
2 VOLT
Minimum size of detected object
Cylinder diameter 2 mm at 0.02 m
Delay first up
5 MILLISECOND
Current consumption
15 mA
Status LED
Output state: 1 LED (yellow)
Switching frequency
<= 80 Hz
Delay response
4 MILLISECOND
Delay recovery
4 MILLISECOND
IP degree of protection
IP67 conforming to IEC 60529
Marking
CE
Standards
IEC 60947-5-2
Product certifications
cULus
Vibration resistance
+/- 2 mm conforming to IEC 60068-2-6 (f = 10-55 Hz)
Shock resistance
50 gn in all 3 axes for 11 ms conforming to IEC 60068-2-27
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
4.318 CENTIMETER
Package 1 width
6.604 CENTIMETER
Package 1 length
9.652 CENTIMETER
Package 1 weight
0.0726 KILOGRAM
Unit type of package 3
CAR
Number of units in package 3
1
Package 3 height
6.5 CENTIMETER
Package 3 width
4 CENTIMETER
Package 3 length
9.5 CENTIMETER
Unit type of package 2
S03
Package 3 weight
0.075 KILOGRAM
Number of units in package 2
94
Package 2 height
30 CENTIMETER
Package 2 width
30 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
7.692 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Expandir todo
Dibujos tecnicos
Dimensions
Minimum Mounting Distances
- e(1) > 25 mm
- e(2) > 700 mm
- e(3) > 60 mm
Wiring Diagram
3-Wire Type
- (1) (+)
- (3) (-)
Curves
Square Object
- (1) Parallel movement
- (2) Distance
- (3) Blind zone for diffuse sensors.
Curves
Cylindrical Object
- (1) Parallel movement
- (2) Distance
- (3) Blind zone for diffuse sensors.
- (1) Parallel movement
- (2) Distance
- (3) Blind zone for diffuse sensors.
