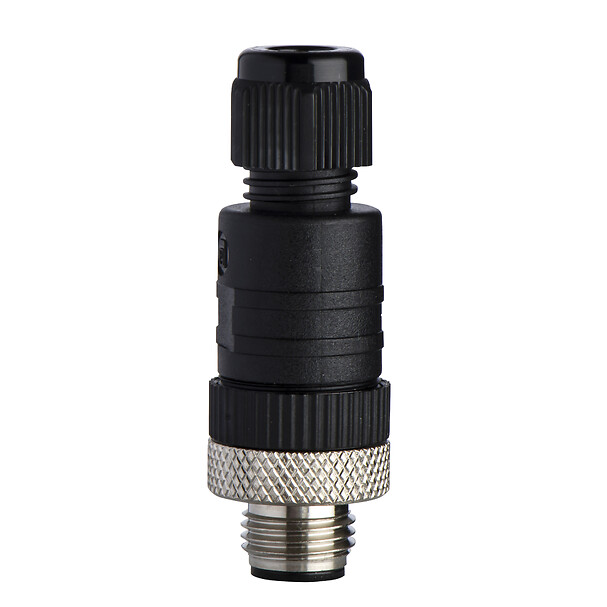

XZCC20FDM30B
Female, 1/2 20UNF, 3 pin, straight connector, cable gland Pg 7
End of comm. announced Fecha de fin de comercialización : March 31st 2026 Fecha de fin del servicio : December 31st 2026
Expandir todo
Ficha de datos
Accessory / separate part type
Connector
Accessory / separate part category
Cabling accessories
Electrical connection
Straight female connector 1/2 20 UNF, 3 pins
Collar material
Metal
Cable connection
-
IP degree of protection
IP67
[Ue] rated operational voltage
250 V AC
Insulating resistance
1000 GIGAOHM
Unit type of package 1
PCE
Number of units in package 1
1
Unit type of package 2
S01
Number of units in package 2
100
Package 2 height
13.208 CENTIMETER
Package 2 width
25 CENTIMETER
Package 2 length
28 CENTIMETER
Package 2 weight
4.205 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Expandir todo
Dibujos tecnicos
Dimensions
- (1) Cable gland : no. 7 plastic (Pg 7)
Connections and Schemes
Expandir todo
Documentos y Descargas
Nombre del documento
Fecha
Tamaño
2024-06-28
4263041
Nombre del documento
Fecha
Tamaño
2025-05-16
544270
2025-02-28
439601
Expandir todo
Productos y accesorios relacionados
XZCC20MDM30B
Male, 1/2 20UNF, 3 pin, straight connector, cable gland Pg 7
