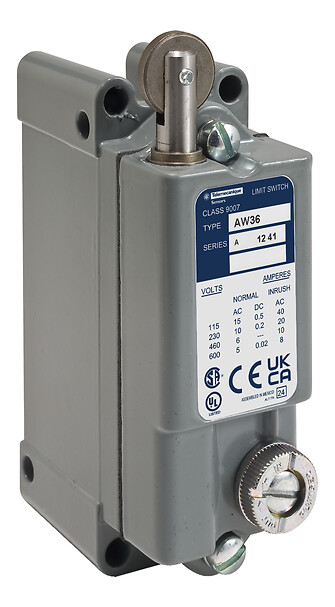

Mounting mode
Surface mounting
Operator profile
Plunger head
Operator material
Cast zinc
Movement of operating head
Linear
Type of operator
Spring return roller plunger steel with micrometer adjustment
Switch actuation
By 30° cam
Type of approach
Traverse approach, 2 directions
Electrical connection
1…2 cables for screw-clamp terminals (AWG 22...AWG 12)
Cable entry
1 entry for 1/2" - 14 NPT conforming to ANSI B1.20.1
Contacts type and composition
NC-NO, switch function: SPDT-DB
Contact operation
Snap action
Contacts material
Silver contacts
Terminals description ISO n°1
(3-4)NO
(1-2)NC
Minimum force for tripping
3 lbf
Repeat accuracy
+/- 0.001 in
[Ie] rated operational current
5 A at 600 V AC, A600 conforming to NEMA rating designation
6 A at 480 V AC, A600 conforming to NEMA rating designation
10 A at 240 V AC, A600 conforming to NEMA rating designation
15 A at 120 V AC, A600 conforming to NEMA rating designation
0.02 A at 600 V DC
0.2 A at 250 V DC
0.5 A at 125 V DC
[Ithe] conventional enclosed thermal current
15 A
[Ui] rated insulation voltage
600 V (pollution degree 3) conforming to UL 508 for contact block
600 V conforming to CSA C22.2 No 14 for contact block
