9007BA1

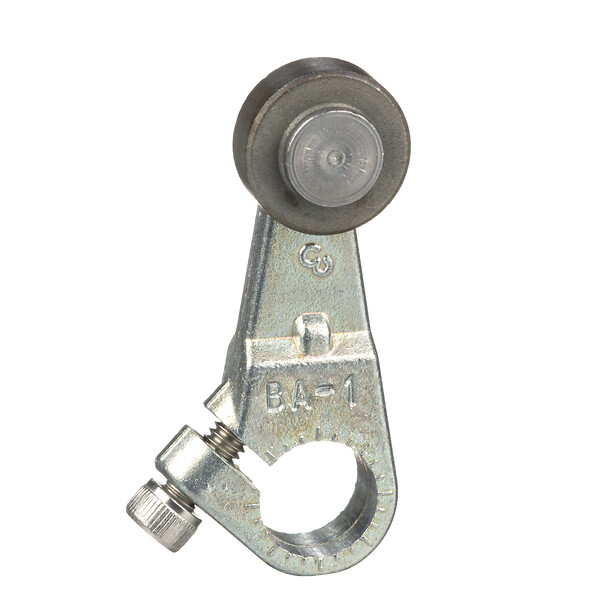

Limit switch lever 9007C, snap arm C, 1.38 in, option version
COMMERCIALISED
Expand all
Datasheet
Range of product
9007
Series name
Heavy duty
Product or component type
Limit switch lever
Device short name
9007C
Type of roller
1 steel outside roller diameter: 0.63 in - width: 0.25 in
Type of operator
Cast zinc spring return roller lever length: 1.38-1.38 in - offset: - -
Type of approach
Lateral approach
Movement of operating head
Rotary
Switch actuation
By 30° cam
Positive opening
Without
Environmental characteristic
Standard environment
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
1.524 CENTIMETER
Package 1 width
2.286 CENTIMETER
Package 1 length
5.08 CENTIMETER
Package 1 weight
0.0454 KILOGRAM
Indivisible sale quantity
1
