9007C52E
Limit switch, 9007, 600 V 10amp c +options
Commercialised
Expand all
Datasheet
Range of product
9007
Series name
Heavy duty
Product or component type
Limit switch
Product specific application
Compact box
Device short name
9007C
Body type
Plug-in
Head type
Plunger head
Material
Metal
Fixing mode
By the body
Movement of operating head
Linear
Type of operator
Stainless steel spring return plunger (-)
Switch actuation
On end
Type of approach
Vertical approach, 1 direction
Electrical connection
Screw-clamp terminals (AWG 22...AWG 12), 1-2
Cable entry
1 entry for 1/2" - 14 NPT conforming to ANSI B1.20.1
Contacts type and composition
NC-NO
Contact operation
Snap action
Positive opening
Without
Body material
Zinc
Head material
Zinc
Function available
Not applicable
Switch function
SPDT-DB
Contact form
Form Z
Contacts material
Silver contacts
Terminals description ISO n°1
(1-2)NC
(3-4)NO
(3-4)NO
Repeat accuracy
+/- 0.001 in linear travel of cam
Local signalling
without
Shock resistance
60 gn for 9 ms conforming to IEC 60068-2-27
Vibration resistance
25 gn (f= 10-150 Hz) conforming to IEC 60068-2-6
NEMA degree of protection
NEMA 1 conforming to Nema type 250, NEMA 2 conforming to Nema type 250, NEMA 4 conforming to Nema type 250, NEMA 6 conforming to Nema type 250, NEMA 6P conforming to Nema type 250, NEMA 12 conforming to Nema type 250, NEMA 13 conforming to Nema type 250
IP degree of protection
IP67 conforming to IEC 60529
Electrical shock protection class
Class 0 conforming to IEC 61140
Environmental characteristic
Standard environment
Protective treatment
Epoxy powder coat
Package 1 height
4.064 CENTIMETER
Package 1 width
5.08 CENTIMETER
Unit type of package 1
PCE
Package 1 length
13.208 CENTIMETER
Number of units in package 1
1
Package 1 weight
412.769 GRAM
Unit type of package 2
S03
Number of units in package 2
25
Package 2 height
30 CENTIMETER
Package 2 width
30 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
10.863 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Expand all
Documents & Downloads
Document name
Date
Size
2024-01-31
765681
Document name
Date
Size
7/18/2024
101573
7/18/2024
16120
7/18/2024
16928
7/18/2024
19576
7/18/2024
20028
7/18/2024
20598
7/18/2024
20666
7/18/2024
20697
7/18/2024
20825
7/18/2024
20859
7/18/2024
21302
7/18/2024
21443
7/18/2024
23646
7/18/2024
252561
7/18/2024
30598
Expand all
Related products & accessories
9007C52B2M11
Limit switch, 9007, 9007C compact 1 NO/NC, rotary head, CW+CCW, standard

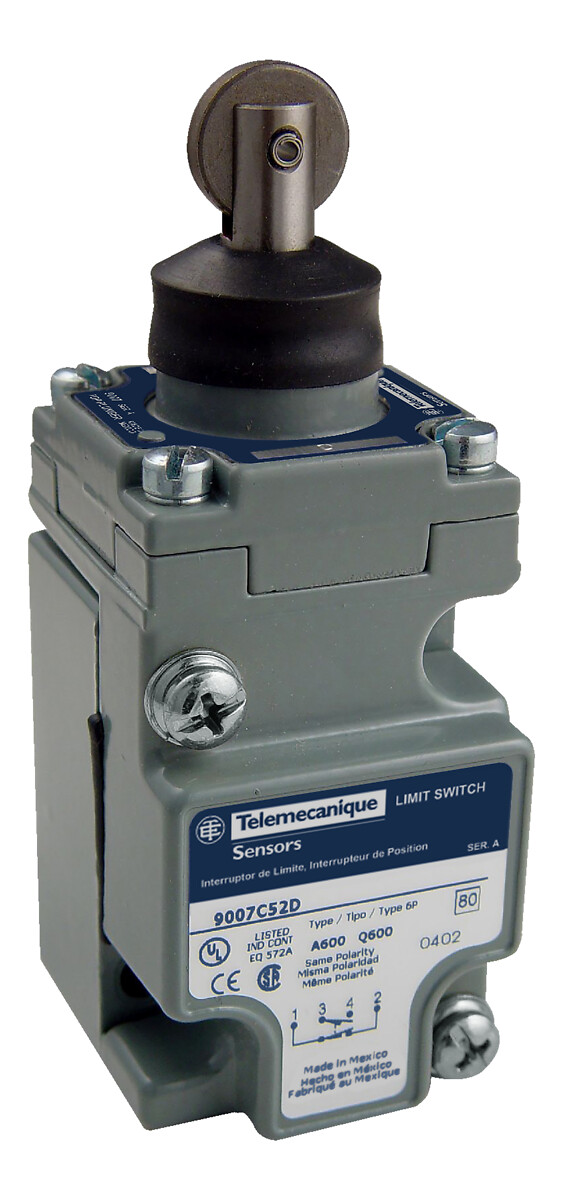

9007C52D
Limit switch, 9007, 600 V 10amp c +options
9007C52G
Limit switch, 9007, 600 V 10amp c +options

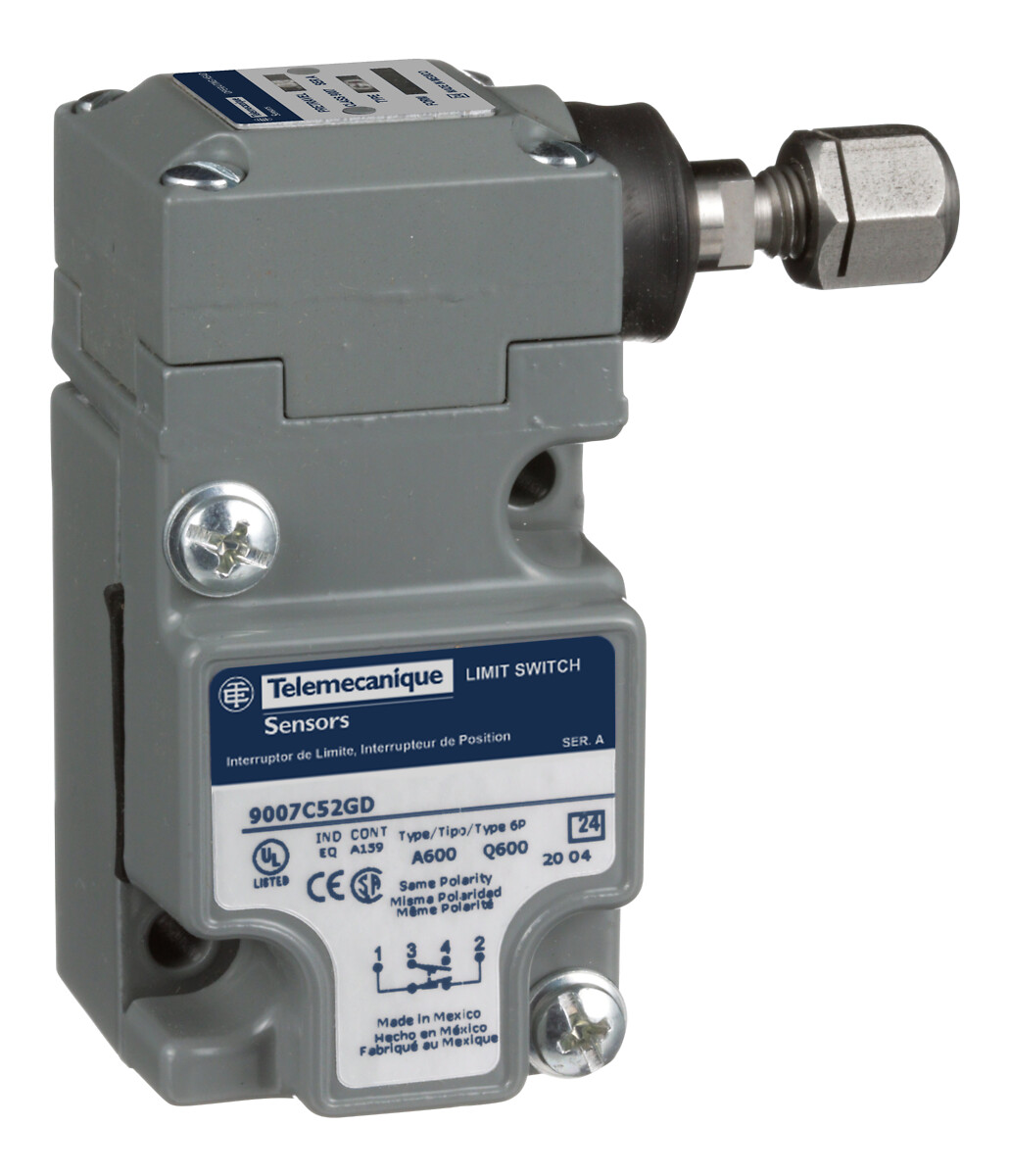

9007C52GD
Limit switch, 9007, 600 V 10amp c +options
9007C52J
Limit switch, 9007, 600 V 10amp c +options

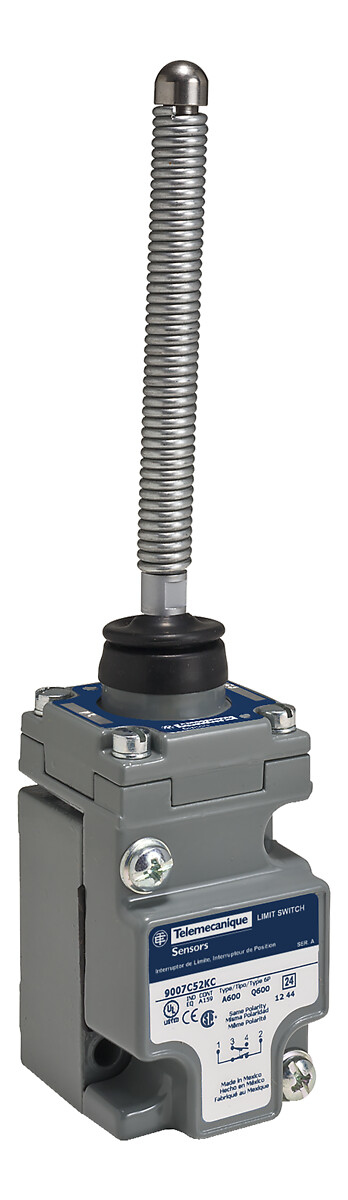

9007C52KC
Limit switch, 9007, 600 V 10amp c +options

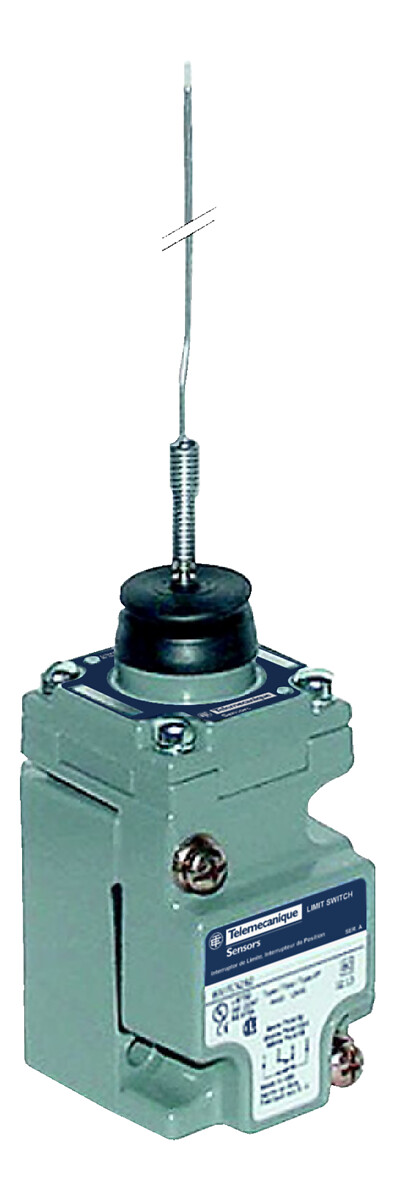

9007C52N2
