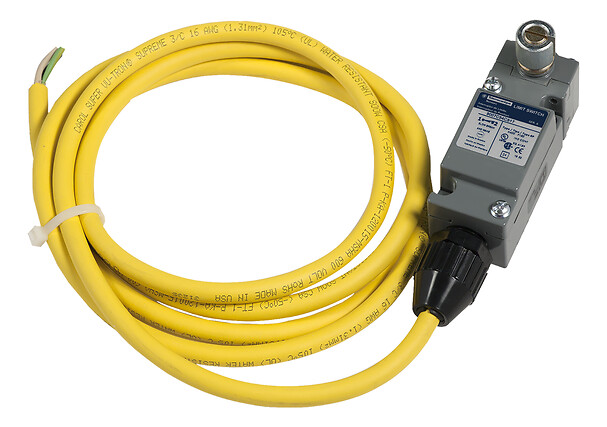

9007C54CS17
9007, limit switch 600 V 10amp c special +opti
Commercialized
Expand all
Datasheet
Range of produc
9007
Series name
Heavy duty
Device short name
C
Head type
Turret head rotary lever
Type of operator
spring return lever arm (to be ordered separately
maintained
maintained
Switch actuation
CW and CCW
Cable entry
NPT conduit entry, cable outer diameter: 12.70 mm
Contacts type and composition
1 NO/1 NC
Contact operation
Snap action
Body material
Zinc alloy
Switch function
SPDT-DB
Contact form
Form Z
Contacts material
Silver alloy (Ag/Ni)
Minimum torque for tripping
0.34 N.m
Tripping angle
45 °
Maximum displacement angle
90 °
[Ie] rated operational current
10 A, A600
10 A, Q600
10 A, Q600
[Ui] rated insulation voltage
600 V
Product certifications
CE
CSA
UL listed
CSA
UL listed
Provided equipment
Receptacle
Ambient air temperature for operation
-29…85 °C
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
25.806 cm
Package 1 Width
10.16 cm
Package 1 Length
65.548 cm
Package 1 Weight
566.991 g
REACh Regulation
EU RoHS Directive
Not applicable, out of EU RoHS legal scope
Environmental Disclosure
Circularity Profile
No need of specific recycling operations
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
