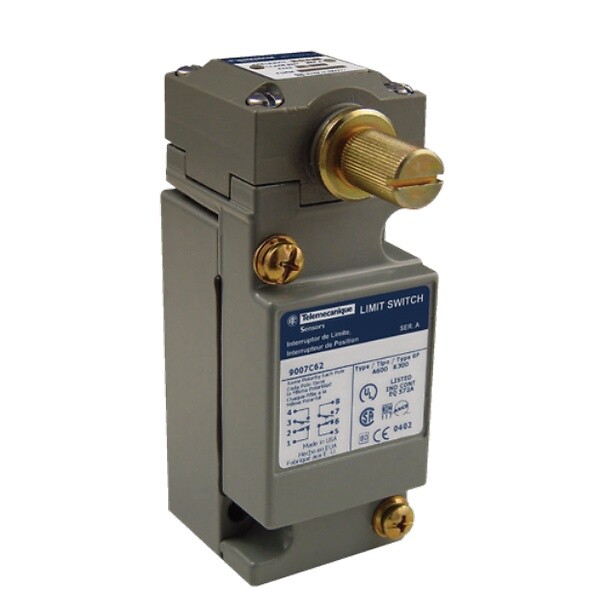

9007C54JS9
9007, limit switch 600 V 10amp c special +opti
Commercialized
Expand all
Datasheet
Body type
Standard plug-in
Device short name
C
Series name
Heavy duty
[In] rated current
10 A
Body material
Zinc alloy
Contact code designation
Q600
A600
A600
Contacts material
Silver alloy (Ag/Ni)
Contact operation
Snap action
Maximum displacement angle
90 °
Mounting location
Front
Rear
Rear
Switch actuation
Any direction
Tilting angle
10 °
Torque value
0.34 N.m
Tripping angle
3 °
Type of operator
Spring return wobble stick
Delrin extension
Delrin extension
Ambient air temperature for operation
-18…85 °C
NEMA degree of protection
NEMA 1/2/4/6/6P/12/13
Product certifications
CE
UL listed file E42259 CCN NKCR
CSA LR25490 class 3211 03
UL listed file E42259 CCN NKCR
CSA LR25490 class 3211 03
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
12.903 cm
Package 1 Width
5.08 cm
Package 1 Length
32.774 cm
Package 1 Weight
566.991 g
Sustainable offer status
Green Premium product
REACh Regulation
EU RoHS Directive
Pro-active compliance (Product out of EU RoHS legal scope)
Mercury free
Yes
RoHS exemption information
Environmental Disclosure
Circularity Profile
No need of specific recycling operations
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
