Contacts material
Silver contacts
Terminals description ISO n°1
(5-6)NC
(7-8)NO
(1-2)NC
(3-4)NO

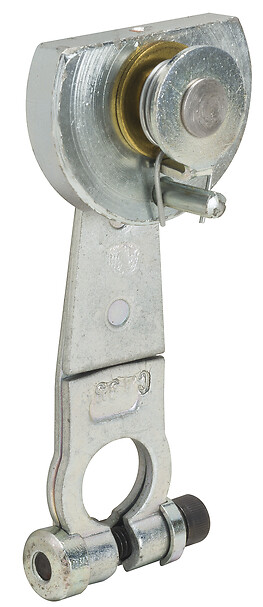

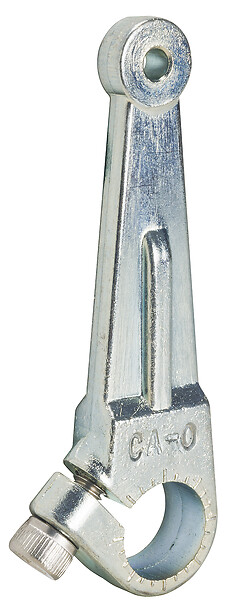

Maximum actuation speed
90 ft/min with 45° cam angle, levers only
130 ft/min with 30° cam angle, levers only
Maximum displacement angle
90 °
Repeat accuracy
+/- 0.001 in linear travel of cam
[Ie] rated operational current
1.2 A at 600 V AC, A600 conforming to NEMA
1.5 A at 480 V AC, A600 conforming to NEMA
3 A at 240 V AC, A600 conforming to NEMA
6 A at 120 V AC, A600 conforming to NEMA
0.11 A at 250 V DC, R300 conforming to NEMA
0.55 A at 125 V DC, R300 conforming to NEMA
[Ithe] conventional enclosed thermal current
10 A
[Ui] rated insulation voltage
600 V (pollution degree 3) conforming to UL 508 for contact block
600 V (pollution degree 3) conforming to CSA C22.2 No 14 for contact block
[Uimp] rated impulse withstand voltage
2.5 kV AC 1 min conforming to CE
2.2 kV AC 1 min conforming to UL
2.64 kV AC 1 s conforming to CSA
Short-circuit protection
10 A by CC fuse, protection type: non-time delay
Electrical durability
1000000 cycles
Mechanical durability
10000000 cycles
