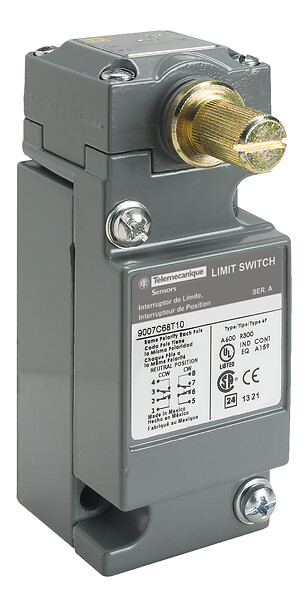

9007C68T10Y203
C series, Limit switch, 9007, 600 V 10amp +options
Commercialized
Expand all
Datasheet
Device short name
C
Series name
Heavy duty
[In] rated current
10 A
Body material
Zinc alloy
Contacts material
Silver alloy (Ag/Ni)
Contact operation
Snap action
Contacts type and composition
2 NO/2 NC for switched neutral
Maximum displacement angle
180 °
90 °
90 °
Specificity of operator
Standard pre-travel
Switch actuation
CW and CCW
Tilting angle
10 °
Torque value
0.45 N.m
Tripping angle
4 °
Ambient air temperature for operation
-29…85 °C
Product certifications
UL listed
CE
CSA
CE
CSA
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
25.806 cm
Package 1 Width
10.16 cm
Package 1 Length
65.548 cm
Package 1 Weight
566.99 g
REACh Regulation
EU RoHS Directive
Not applicable, out of EU RoHS legal scope
Environmental Disclosure
Circularity Profile
No need of specific recycling operations
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
