Operator profile
Plunger head
Operator material
Cast zinc
Movement of operating head
Linear
Type of operator
Spring return plunger plastic with thermoplastic end
Type of approach
Vertical approach, 1 direction

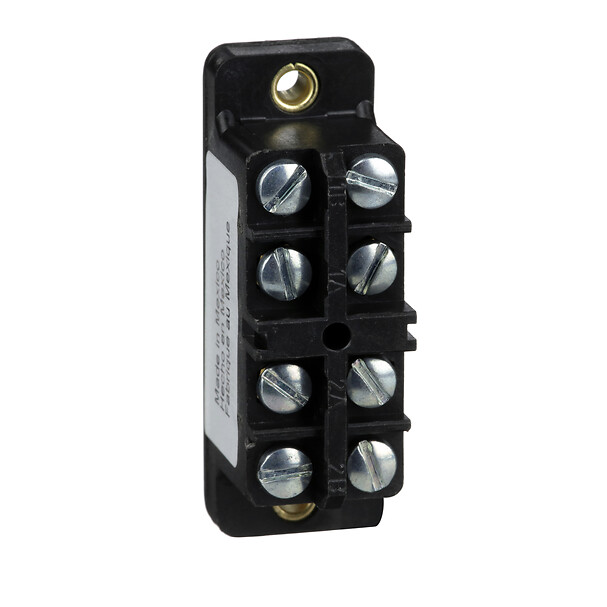

Electrical connection
1…2 cables for 6 binder head screw terminals (AWG 22...AWG 14)
Contacts type and composition
2(NC-NO), switch function: DPDT-DB
Contact operation
Snap action
Contacts material
Silver contacts
Terminals description ISO n°1
(3-4)NO
(1-2)NC
(5-6)NC
(7-8)NO
Minimum force for tripping
0.44 lbf
Maximum force for tripping
0.75 lbf
[Ie] rated operational current
0.6 A at 600 V AC, B600 conforming to NEMA rating designation
0.75 A at 480 V AC, B600 conforming to NEMA rating designation
1.5 A at 240 V AC, B600 conforming to NEMA rating designation
3 A at 120 V AC, B600 conforming to NEMA rating designation
0.1 A at 250 V DC
0.2 A at 125 V DC
[Ithe] conventional enclosed thermal current
10 A
[Ui] rated insulation voltage
600 V (pollution degree 3) conforming to UL 508 for contact block
600 V conforming to CSA C22.2 No 14 for contact block
