9007CO54

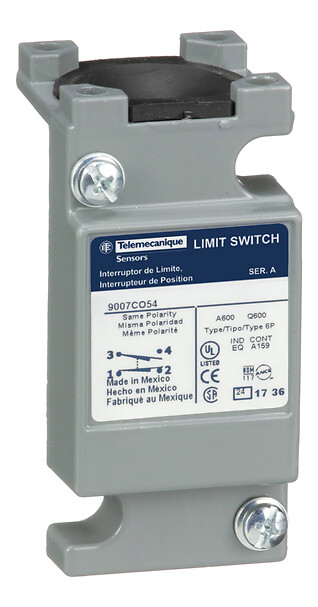

Limit switch plug in unit, 9007, 600 V 10 A c
Commercialized
Expand all
Datasheet
Range of produc
9007
Series name
Heavy duty
Product or component type
Limit switch plug-in unit
Device short name
9007C
Body type
Standard plug-in
Product compatibility
9007C
Local display
Without
Number of poles
1
Contacts type and composition
NC-NO
Contact operation
Snap action
Number of steps
1
Positive opening
Without
Ambient air temperature for operation
-29…85 °C for standard environment
Environmental characteristic
Standard environment
Sale per indivisible quantity
1
Associated head
9007C
Associated connection component
9007CT54
Body material
Zinc
Function available
-
Switch function
SPDT-DB
Contact form
Form Z
Contacts material
Silver contacts
[Ie] rated operational current
1.2 A at 600 V AC, A600 conforming to NEMA rating designation
1.5 A at 480 V AC, A600 conforming to NEMA rating designation
3 A at 240 V AC, A600 conforming to NEMA rating designation
6 A at 120 V AC, A600 conforming to NEMA rating designation
0.1 A at 600 V DC, Q600 conforming to NEMA rating designation
0.27 A at 250 V AC, Q600 conforming to NEMA rating designation
0.55 A at 125 V DC, Q600 conforming to NEMA rating designation
1.5 A at 480 V AC, A600 conforming to NEMA rating designation
3 A at 240 V AC, A600 conforming to NEMA rating designation
6 A at 120 V AC, A600 conforming to NEMA rating designation
0.1 A at 600 V DC, Q600 conforming to NEMA rating designation
0.27 A at 250 V AC, Q600 conforming to NEMA rating designation
0.55 A at 125 V DC, Q600 conforming to NEMA rating designation
[Ithe] conventional enclosed thermal current
10 A
[Ui] rated insulation voltage
600 V (pollution degree 3) conforming to UL 508 for contact block
600 V conforming to CSA C22.2 No 14
600 V conforming to CSA C22.2 No 14
[Uimp] rated impulse withstand voltage
2.5 kV AC 1 min conforming to CE
2.2 kV AC 1 min conforming to UL
2.64 kV AC 1 s conforming to CSA
2.2 kV AC 1 min conforming to UL
2.64 kV AC 1 s conforming to CSA
Short-circuit protection
10 A by CC fuse, protection type: non-time delay
Electrical durability
1000000 cycles
Mechanical durability
10000000 cycles
Terminals description ISO n°1
(1-2)NC
(3-4)NO
(3-4)NO
Width
39.37 mm
Height
79.76 mm
Depth
45.47 mm
Net weight
0.57 kg
Shock resistance
60 gn for 9 ms conforming to IEC 60068-2-27
Vibration resistance
25 gn (f= 10…150 Hz) conforming to IEC 60068-2-6
NEMA degree of protection
NEMA 1 conforming to Nema type 250
NEMA 2 conforming to Nema type 250
NEMA 4 conforming to Nema type 250
NEMA 6 conforming to Nema type 250
NEMA 6P conforming to Nema type 250
NEMA 12 conforming to Nema type 250
NEMA 13 conforming to Nema type 250
NEMA 2 conforming to Nema type 250
NEMA 4 conforming to Nema type 250
NEMA 6 conforming to Nema type 250
NEMA 6P conforming to Nema type 250
NEMA 12 conforming to Nema type 250
NEMA 13 conforming to Nema type 250
IP degree of protection
IP67 conforming to IEC 60529
Electrical shock protection class
Class 0 conforming to IEC 61140
Ambient air temperature for storage
-29…85 °C
Protective treatment
Epoxy powder coat
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
25.806 cm
Package 1 Width
10.16 cm
Package 1 Length
65.548 cm
Package 1 Weight
199.581 g
Unit Type of Package 2
S03
Number of Units in Package 2
25
Package 2 Height
30.0 cm
Package 2 Width
30.0 cm
Package 2 Length
40.0 cm
Package 2 Weight
27.463 kg
Sustainable offer status
Green Premium product
REACh Regulation
EU RoHS Directive
Pro-active compliance (Product out of EU RoHS legal scope)
Mercury free
Yes
RoHS exemption information
Environmental Disclosure
Circularity Profile
No need of specific recycling operations
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Warranty
18 months
