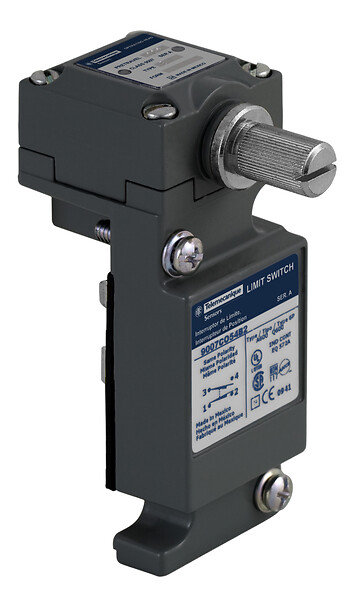

9007CO54B2
Limit switch plug in unit, 9007, switchplug 600 V 10 A c
Commercialized
Expand all
Datasheet
Range of produc
9007
Series name
Heavy duty
Product or component type
Limit switch plug-in unit
Device short name
9007C
Local display
Without
Contacts type and composition
NC-NO
Contact operation
Snap action
Body material
Zinc alloy
Switch actuation
CW and CCW
Switch function
SPDT-DB
Contact form
Form Z
Contacts material
Silver alloy (Ag/Ni)
[Ie] rated operational current
10 A at 120 V AC, A600
[Ui] rated insulation voltage
600 V conforming to CE
600 V conforming to CSA
600 V conforming to UL 508
600 V conforming to CSA
600 V conforming to UL 508
Terminals description ISO n°1
(3-4)NO
(1-2)NC
(1-2)NC
Width
39.37 mm
Height
79.76 mm
Depth
45.47 mm
Net weight
0.57 kg
Head type
Rotary head
Provided equipment
Without receptacle
Specificity of operator
Standard pre-travel
Torque value
0.45 N.m
Type of operator
Spring return lever arm to be ordered separately
Vibration resistance
25 gn (f= 10…150 Hz) conforming to IEC 60068-2-6
NEMA degree of protection
NEMA 1/2/4X/6/6P/12/13 conforming to Nema type 250
IP degree of protection
IP67 conforming to IEC 60529
Electrical shock protection class
Class 0 conforming to IEC 61140
Ambient air temperature for storage
-29…85 °C
Protective treatment
Epoxy powder coat
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
25.806 cm
Package 1 Width
10.16 cm
Package 1 Length
65.548 cm
Package 1 Weight
371.946 g
Sustainable offer status
Green Premium product
REACh Regulation
EU RoHS Directive
Pro-active compliance (Product out of EU RoHS legal scope)
Mercury free
Yes
RoHS exemption information
Environmental Disclosure
Circularity Profile
No need of specific recycling operations
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
