9007CO6

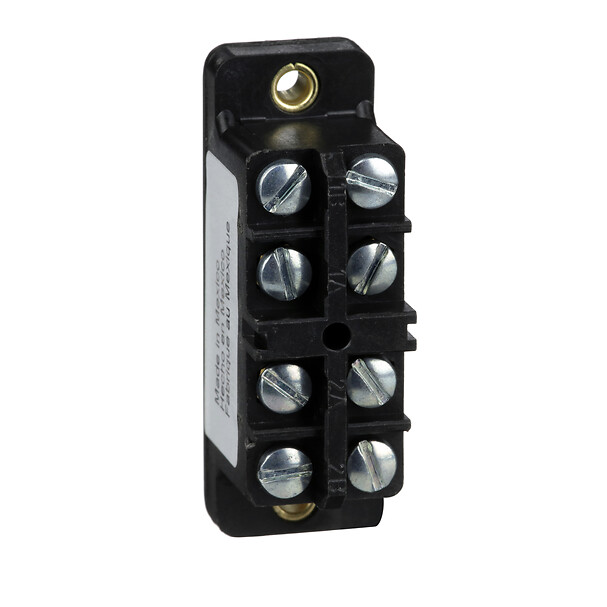

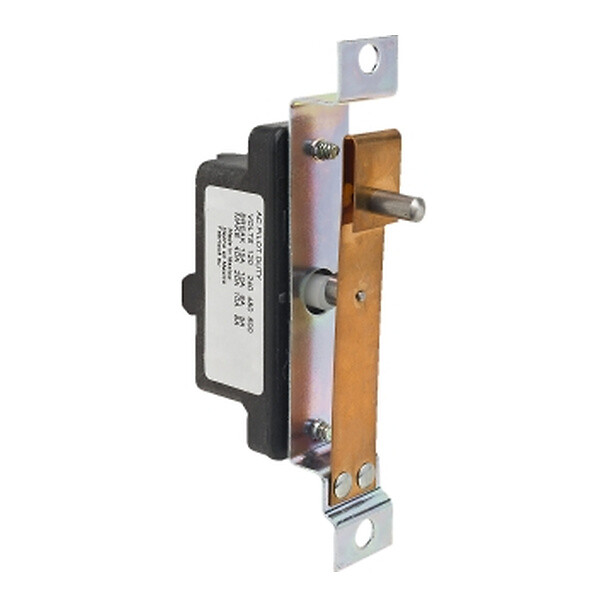

Snap basic limit switch, 9007, plunger, 2 NO, plug in
Commercialized
Expand all
Datasheet
Range of produc
9007
Series name
Heavy duty
Product or component type
Snap basic limit switch
Device short name
9007AO/CO
Body type
Plug-in
Mounting mode
-
Operator profile
Plunger head
Material
Metal
Body material
Cast zinc
Operator material
Cast zinc
Fixing mode
By the body
Movement of operating head
Linear
Type of operator
Spring return plunger plastic with thermoplastic end
Switch actuation
On end
Type of approach
Vertical approach, 1 direction
Electrical connection
1…2 cables for 6 binder head screw terminals (AWG 22...AWG 14)
Number of poles
2
Contacts type and composition
2 NO, switch function: DPST-NO-DB
Contact form
Form AA
Contact operation
Snap action
Number of steps
1
Contacts material
Silver contacts
Positive opening
Without
Terminals description ISO n°1
(7-8)NO
(3-4)NO
(3-4)NO
Minimum force for tripping
0.44 lbf
Maximum force for tripping
0.75 lbf
[Ie] rated operational current
0.1 A at 600 V DC, Q600 conforming to NEMA rating designation
0.6 A at 600 V AC, B600 conforming to NEMA rating designation
0.75 A at 480 V AC, B600 conforming to NEMA rating designation
1.5 A at 240 V AC, B600 conforming to NEMA rating designation
3 A at 120 V AC, B600 conforming to NEMA rating designation
0.3 A at 250 V DC, Q600 conforming to NEMA rating designation
1 A at 125 V DC, Q600 conforming to NEMA rating designation
0.6 A at 600 V AC, B600 conforming to NEMA rating designation
0.75 A at 480 V AC, B600 conforming to NEMA rating designation
1.5 A at 240 V AC, B600 conforming to NEMA rating designation
3 A at 120 V AC, B600 conforming to NEMA rating designation
0.3 A at 250 V DC, Q600 conforming to NEMA rating designation
1 A at 125 V DC, Q600 conforming to NEMA rating designation
[Ithe] conventional enclosed thermal current
10 A
[Ui] rated insulation voltage
600 V (pollution degree 3) conforming to UL 508 for contact block
600 V conforming to CSA C22.2 No 14 for contact block
600 V conforming to CSA C22.2 No 14 for contact block
Width
21.08 mm
Height
63.50 mm
Depth
28.96 mm
Net weight
0.23 kg
NEMA degree of protection
NEMA 1 conforming to Nema type 250
IP degree of protection
IP20 conforming to IEC 60529
Ambient air temperature for operation
-29…85 °C
Ambient air temperature for storage
-29…85 °C
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
6.452 cm
Package 1 Width
2.54 cm
Package 1 Length
16.387 cm
Package 1 Weight
226.796 g
REACh Regulation
EU RoHS Directive
Not applicable, out of EU RoHS legal scope
Environmental Disclosure
Circularity Profile
No need of specific recycling operations
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Warranty
18 months
