9007CT62

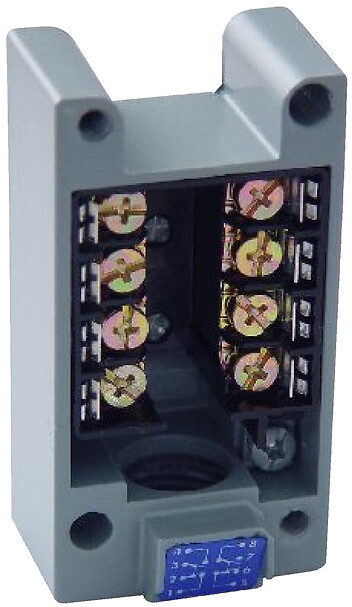

Limit switch base, 9007, receptacle c +options
COMMERCIALISED
Expand all
Datasheet
Series name
HEAVY DUTY
Product or component type
LIMIT SWITCH BASE
Device short name
9007C
Body type
STANDARD PLUG IN
Product compatibility
9007C
Electrical connection
Screw-clamp terminals (AWG 22...AWG 12), 1-2
Cable entry
1 entry for 1/2" - 14 NPT conforming to ANSI B1.20.1
Environmental characteristic
STANDARD
Body material
ZINC
Function available
NOT APPLICABLE
Shock resistance
60 gn for 9 ms conforming to IEC 60068-2-27
Vibration resistance
25 gn (f= 10-150 Hz) conforming to IEC 60068-2-6
NEMA degree of protection
NEMA 1 conforming to Nema type 250,
NEMA 2 conforming to Nema type 250,
NEMA 4 conforming to Nema type 250,
NEMA 6 conforming to Nema type 250,
NEMA 6P conforming to Nema type 250,
NEMA 12 conforming to Nema type 250,
NEMA 13 conforming to Nema type 250
NEMA 2 conforming to Nema type 250,
NEMA 4 conforming to Nema type 250,
NEMA 6 conforming to Nema type 250,
NEMA 6P conforming to Nema type 250,
NEMA 12 conforming to Nema type 250,
NEMA 13 conforming to Nema type 250
IP degree of protection
IP67 conforming to IEC 60529
Electrical shock protection class
Class 0 conforming to IEC 61140
Protective treatment
EPOXY POWDER COAT
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
4.0640 CENTIMETER
Package 1 width
6.8580 CENTIMETER
Package 1 length
10.4140 CENTIMETER
Package 1 weight
217.7240 GRAM
