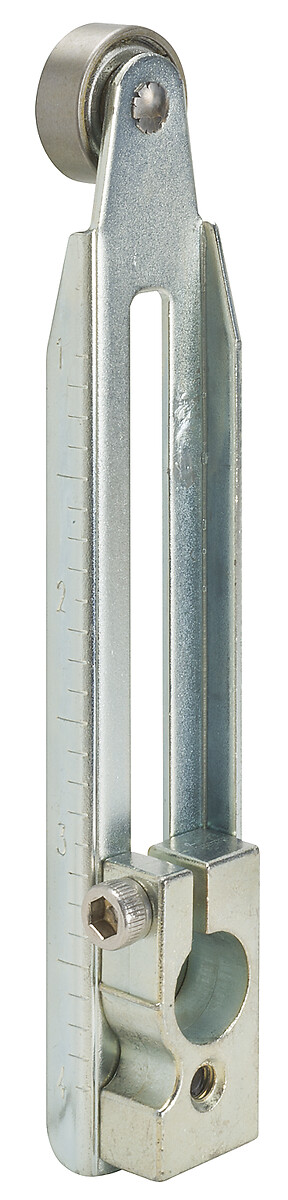

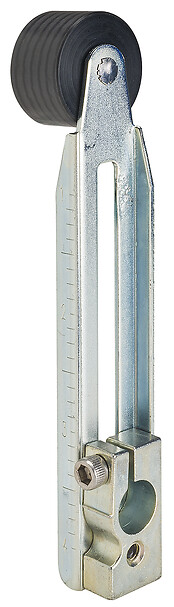

9007HA22
Limit switch lever, 9007, arm aw+c +options
Commercialized
Expand all
Datasheet
Range of produc
9007
Series name
Heavy duty
Product or component type
Limit switch lever
Device short name
9007C
Associated head
9007C
9007A
9007N
9007T5
9007B
9007T10
9007A
9007N
9007T5
9007B
9007T10
Associated complete product
9007C
9007AW
9007AW
Movement of operating head
Rotary
Type of operator
Cast zinc spring return adjustable roller lever length: 22.35…101.60 mm - offset: - -
Type of roller
1 nylon outside roller diameter: 25.40 mm - width: 16.00 mm
Type of approach
Lateral approach
Positive opening
Without
Switch actuation
By 30° cam
Net weight
0.05 kg
Ambient air temperature for operation
-29…85 °C
Ambient air temperature for storage
-29…85 °C
Environmental characteristic
Standard environment
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
2.3 cm
Package 1 Width
10.2 cm
Package 1 Length
20.3 cm
Package 1 Weight
63.5 g
Sustainable offer status
Green Premium product
REACh Regulation
EU RoHS Directive
Pro-active compliance (Product out of EU RoHS legal scope)
Mercury free
Yes
RoHS exemption information
Environmental Disclosure
Circularity Profile
No need of specific recycling operations
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Warranty
18 months
