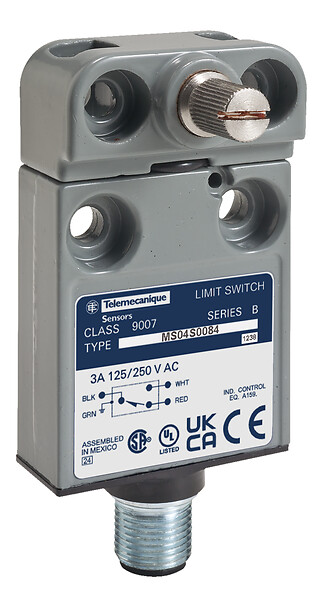

Movement of operating head
Rotary
Type of operator
Spring return without operating lever -
Type of approach
Lateral approach, 2 directions
Switch actuation
CW and CCW
From left and right
Contacts type and composition
NC-NO
Contacts material
Gold flashed contacts
Contact operation
Snap action
Electrical connection
Male connector M12 micro DC type 4 pins bottom
Terminals description ISO n°1
(3-4)NC
(1)gnd
(2-4)NO
Minimum torque for tripping
48 ozf.in
Maximum actuation speed
130 ft/min with 30° cam angle, levers only
90 ft/min with 45° cam angle, levers only
Maximum displacement angle
70 °
[Ie] rated operational current
100 mA at 125 V AC
30 mA at 28 V DC
[Ithe] conventional enclosed thermal current
10 A
[Ui] rated insulation voltage
300 V (pollution degree 3) conforming to UL 508
300 V (pollution degree 3) conforming to CSA C22.2 No 14
Electrical durability
100000 cycles
Mechanical durability
10000000 cycles
Sale per indivisible quantity
1
