9007R22

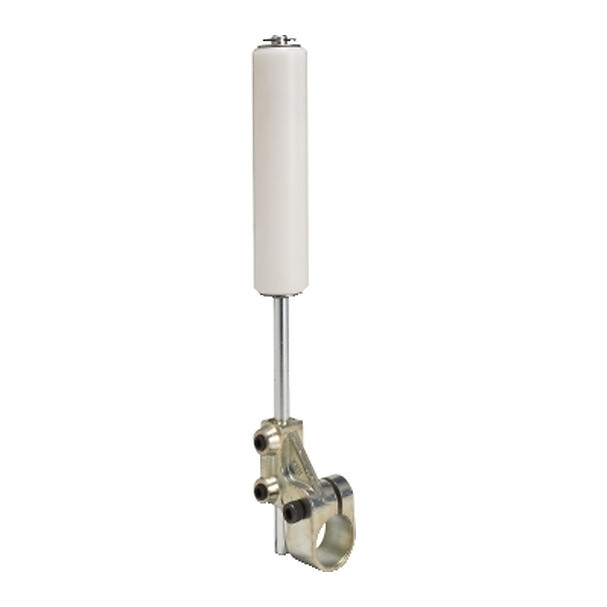

Limit switch lever, 9007, arm t+ft+options
Commercialized
Expand all
Datasheet
Range of produc
9007
Series name
Severe duty
Product or component type
Limit switch lever
Device short name
9007T/FT
Associated head
9007NS9
9007CS9
9007T5S9
9007BS9
9007AS9
9007T10S9
9007CS9
9007T5S9
9007BS9
9007AS9
9007T10S9
Associated complete product
9007T
9007C..S9
9007FT
9007C..S9
9007FT
Movement of operating head
Rotary
Type of operator
Cast zinc vertical roller lever length: 214.38 mm - offset: - conveyor roller and shaft without clamp (use 9007R16 or 17)
Type of roller
1 acetal resin conveyor side guide roller diameter: 22.35 mm - width: 95.25 mm
Type of approach
Lateral approach
Positive opening
Without
Switch actuation
By conveyor belt
Net weight
0.05 kg
Ambient air temperature for operation
-23…85 °C
Ambient air temperature for storage
-23…85 °C
Environmental characteristic
Standard environment
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
6.452 cm
Package 1 Width
2.54 cm
Package 1 Length
16.387 cm
Package 1 Weight
45.359 g
Sustainable offer status
Green Premium product
REACh Regulation
EU RoHS Directive
Pro-active compliance (Product out of EU RoHS legal scope)
Mercury free
Yes
RoHS exemption information
Environmental Disclosure
Circularity Profile
No need of specific recycling operations
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Warranty
18 months
