Home Products 9007T5

9007T5

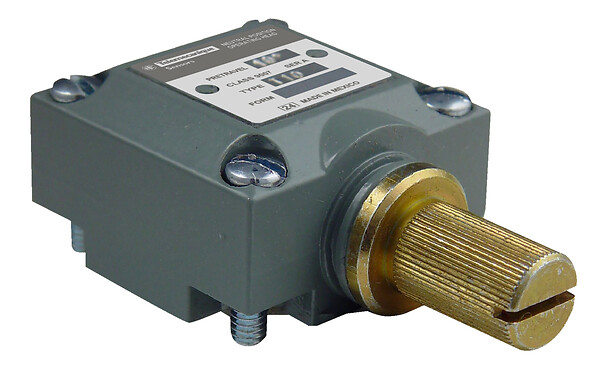

Limit switch head, 9007, c

arrow

Commercialised

Download pdf datasheet Download 3d cad file Find a distributor

Expand all

Datasheet

Range of product
9007
Series name
Heavy duty
Product or component type
Limit switch head
Device short name
9007C
Head type
Rotary head
Product compatibility
9007C
Movement of operating head
Rotary
Type of operator
Spring return neutral position without operating lever zinc low differential
Type of approach
Lateral approach, 2 directions
Positive opening
Without
Function available
Neutral position
Switch actuation
CW and CCW
from left and right
Environmental characteristic
Standard environment
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
19.355 CENTIMETER
Package 1 width
7.62 CENTIMETER
Package 1 length
49.161 CENTIMETER
Package 1 weight
566.991 GRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Expand all

Documents & Downloads

Document name
Date
Size
Class 9007 type C Limit Switches Installation Instructions (pdf)

2024-01-31

765681

Document name
Date
Size
NEMA Square D 9007 Limit Switches, 9007C Heavy Duty SemiModular 39mm Metal Body, rotary head, spring head rtn - 3D CAD (dxf)

7/18/2024

15695

NEMA Square D 9007 Limit Switches, 9007C Heavy Duty SemiModular 39mm Metal Body, rotary head, spring head rtn - 3D CAD (dxf)

7/18/2024

16149

NEMA Square D 9007 Limit Switches, 9007C Heavy Duty SemiModular 39mm Metal Body, rotary head, spring head rtn - 3D CAD (dxf)

7/18/2024

16781

NEMA Square D 9007 Limit Switches, 9007C Heavy Duty SemiModular 39mm Metal Body, rotary head, spring head rtn - 3D CAD (dxf)

7/18/2024

17731

NEMA Square D 9007 Limit Switches, 9007C Heavy Duty SemiModular 39mm Metal Body, rotary head, spring head rtn - 3D CAD (dxf)

7/18/2024

17777

NEMA Square D 9007 Limit Switches, 9007C Heavy Duty SemiModular 39mm Metal Body, rotary head, spring head rtn - 3D CAD (dxf)

7/18/2024

19197

NEMA Square D 9007 Limit Switches, 9007C Heavy Duty SemiModular 39mm Metal Body, rotary head, spring head rtn - 3D CAD (dwg)

7/18/2024

19510

NEMA Square D 9007 Limit Switches, 9007C Heavy Duty SemiModular 39mm Metal Body, rotary head, spring head rtn - 3D CAD (dwg)

7/18/2024

19705

NEMA Square D 9007 Limit Switches, 9007C Heavy Duty SemiModular 39mm Metal Body, rotary head, spring head rtn - 3D CAD (dwg)

7/18/2024

19996

NEMA Square D 9007 Limit Switches, 9007C Heavy Duty SemiModular 39mm Metal Body, rotary head, spring head rtn - 3D CAD (dwg)

7/18/2024

20216

NEMA Square D 9007 Limit Switches, 9007C Heavy Duty SemiModular 39mm Metal Body, rotary head, spring head rtn - 3D CAD (dwg)

7/18/2024

20248

NEMA Square D 9007 Limit Switches, 9007C Heavy Duty SemiModular 39mm Metal Body, rotary head, spring head rtn - 3D CAD (dwg)

7/18/2024

20535

NEMA Square D 9007 Limit Switches, 9007C Heavy Duty SemiModular 39mm Metal Body, rotary head, spring head rtn - 3D CAD (pdf)

7/18/2024

27703

NEMA Square D 9007 Limit Switches, 9007C Heavy Duty SemiModular 39mm Metal Body, rotary head, spring head rtn - 3D CAD (dwg)

7/18/2024

31287

NEMA Square D 9007 Limit Switches, 9007C Heavy Duty SemiModular 39mm Metal Body, rotary head, spring head rtn - 3D CAD (dxf)

7/18/2024

59381

NEMA Square D 9007 Limit Switches, 9007C Heavy Duty SemiModular 39mm Metal Body, rotary head, spring head rtn - 3D CAD (stp)

7/18/2024

94133
