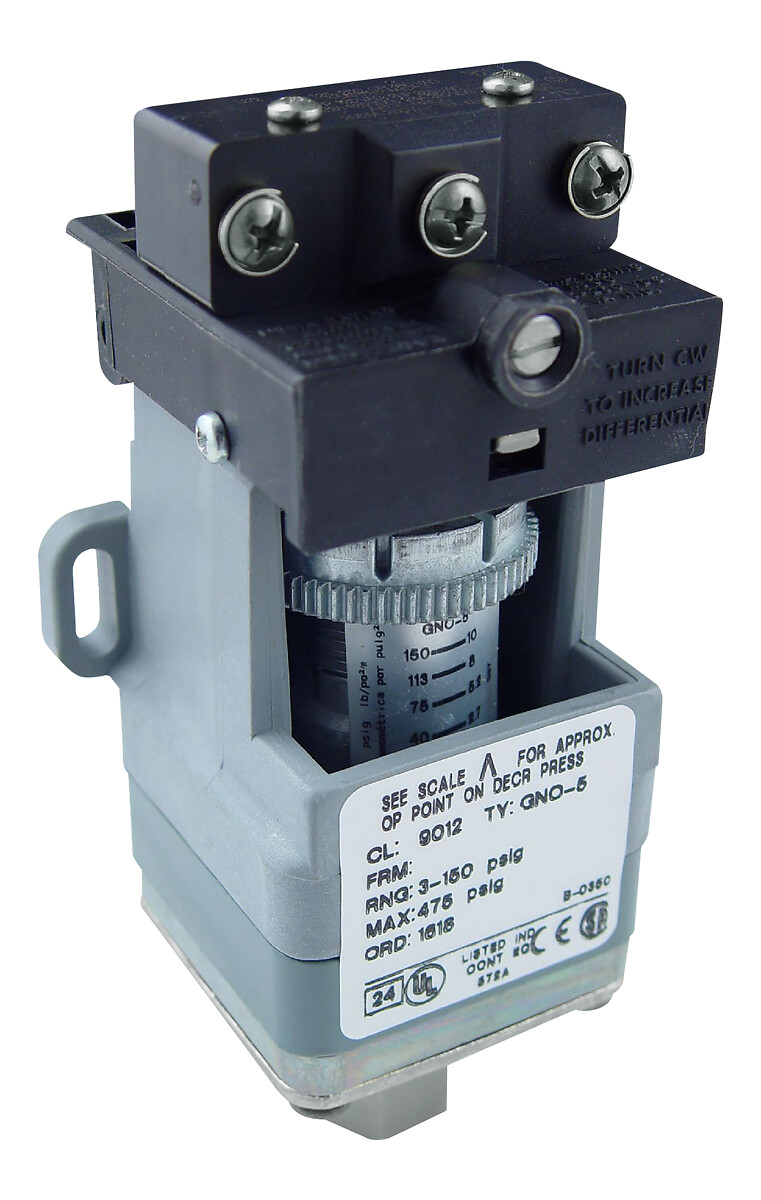

Pressure switch 9012G, adjustable scale, 2 thresholds, 1.0 to 40 PSIG
Commercialized
Expand all
Datasheet
Range of produc
9012G
Pressure sensor type
Electromechanical pressure switch
Pressure sensor name
9012G
Pressure rating
275.79 kPa
Maximum pressure
100 psi
Contacts type and composition
NC-NO, SPDT, Form C, snap action, silver nickel contacts
Controlled fluid
Hydraulic oil (-40…121 °C)
Non-corrosive liquids (-40…121 °C)
Air (-40…121 °C)
Non-corrosive gas (-40…121 °C)
Non-corrosive liquids (-40…121 °C)
Air (-40…121 °C)
Non-corrosive gas (-40…121 °C)
Fluid connection type
0.25 inch 18 NPTF conforming to UL 508
Pressure switch type of operation
Regulation between 2 thresholds
Scale type
Adjustable differential
Local display
Without
Range on decreasing pressure
6.89…275.79 kPa
Approx adjustable differential at mid range
8.27…41.37 kPa +/- 2.5 % full scale
Cable entry
0.5 inch NPT conduit entrance
Terminal block type
4 screw terminals
Electrical connection
Screw-clamp terminals, AWG 22...AWG 12
Electrical circuit type
Control circuit
Local signalling
Without:
[In] rated current
3 A 240 V AC A600 conforming to NEMA rating designation
6 A 120 V AC A600 conforming to NEMA rating designation
0.27 A 250 V DC R300 conforming to NEMA rating designation
0.22 A 125 V DC R300 conforming to NEMA rating designation
6 A 120 V AC A600 conforming to NEMA rating designation
0.27 A 250 V DC R300 conforming to NEMA rating designation
0.22 A 125 V DC R300 conforming to NEMA rating designation
Setting
Internal
Enclosure material
Thermoplastic
Pressure actuator
Diaphragm nitrile (Buna-N)
Height
176.28 mm
Depth
69.85 mm
Width
56.13 mm
Operating position
Any position
Materials in contact with fluid
Nitrile (Buna-N)
Zinc plated steel
Zinc plated steel
Short-circuit protection
10 A cartridge overload and short-circuit protection, type gL
Maximum operating rate
120 cyc/mn
Mechanical durability
5000000 cycles
Repeat accuracy
4 %
Net weight
0.91 kg
Vibration resistance
2 gn (f= 40…150 Hz) conforming to IEC 68-2-6
Shock resistance
50 gn conforming to IEC 58-2-27
Standards
UL 508
CSA C22.2 No 14
CE
CSA C22.2 No 14
CE
Product certifications
UL listed
CSA LR25490 class 3211 03
CSA LR25490 class 3211 03
NEMA degree of protection
NEMA 1 conforming to UL 50
Ambient air temperature for operation
-23…85 °C
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
22.581 cm
Package 1 Width
8.89 cm
Package 1 Length
57.355 cm
Package 1 Weight
861.826 g
Sustainable offer status
Green Premium product
REACh Regulation
EU RoHS Directive
Pro-active compliance (Product out of EU RoHS legal scope)
Mercury free
Yes
RoHS exemption information
Environmental Disclosure
Circularity Profile
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Warranty
18 months
