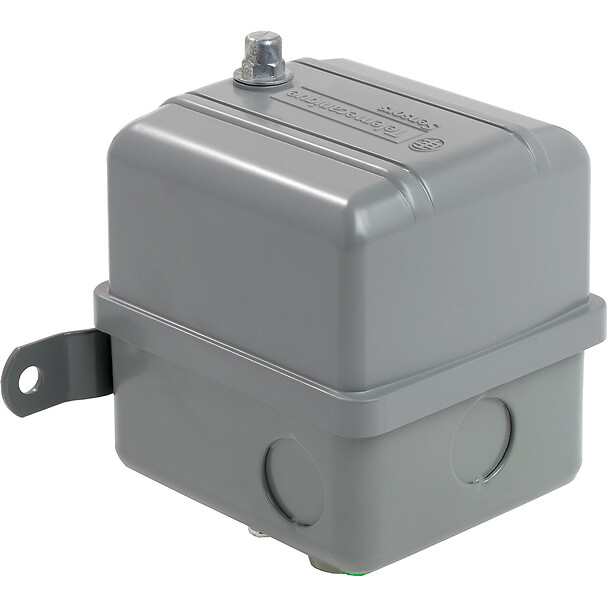

9013GHG5S2J62
Pumptrol, pressure switch 480 VAC 10 A g special
Commercialized
Expand all
Datasheet
Device short name
G
Enclosure type
Standard environment enclosure for indoor
Product specific application
Control electrically driven water pumps and air compressors
Range of produc
Square D Pumptrol
Switch application
Standard
Adjustable range on rising pressure
551.58…1723.69 kPa
Approximate adjustable differential
165.47…310.26 kPa
Depth
93.47 mm
Electrical connection
Screw clamp terminal
Fixing mode
By brackets
Fluid connection type
0.25 inch NPSF internal
Height
145.29 mm
Material
Zinc plated steel: flange
Materials in contact with fluid
Nitrile (Buna-N) diaphragm
Maximum pressure
300 psig
Motor power hp
2 hp at 115 V AC, 1 phase
3 hp at 115 V AC, 3 phases
3 hp at 230 V AC, 1 phase
5 hp at 230 V AC, 3 phases
5 hp at 460/575 V AC, 1 phase
5 hp at 460/575 V AC, 3 phases
3 hp at 115 V AC, 3 phases
3 hp at 230 V AC, 1 phase
5 hp at 230 V AC, 3 phases
5 hp at 460/575 V AC, 1 phase
5 hp at 460/575 V AC, 3 phases
Number of poles
2
Permissible voltage
575 V AC
Pressure actuator
Diaphragm
Pressure setting range
965.27…1206.58 kPa
Net weight
1.02 kg
Range on decreasing pressure
220.63…1482.37 kPa
Switch function
DPST
Width
87.38 mm
NEMA degree of protection
NEMA 1
Product certifications
UL listed file E12158 CCN NKPZ
CSA file LR25490
CSA file LR25490
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
13.462 cm
Package 1 Width
12.192 cm
Package 1 Length
20.574 cm
Package 1 Weight
975.224 g
Sustainable offer status
Green Premium product
REACh Regulation
EU RoHS Directive
Pro-active compliance (Product out of EU RoHS legal scope)
Mercury free
Yes
RoHS exemption information
Environmental Disclosure
Circularity Profile
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
