9013GHW5J99Z

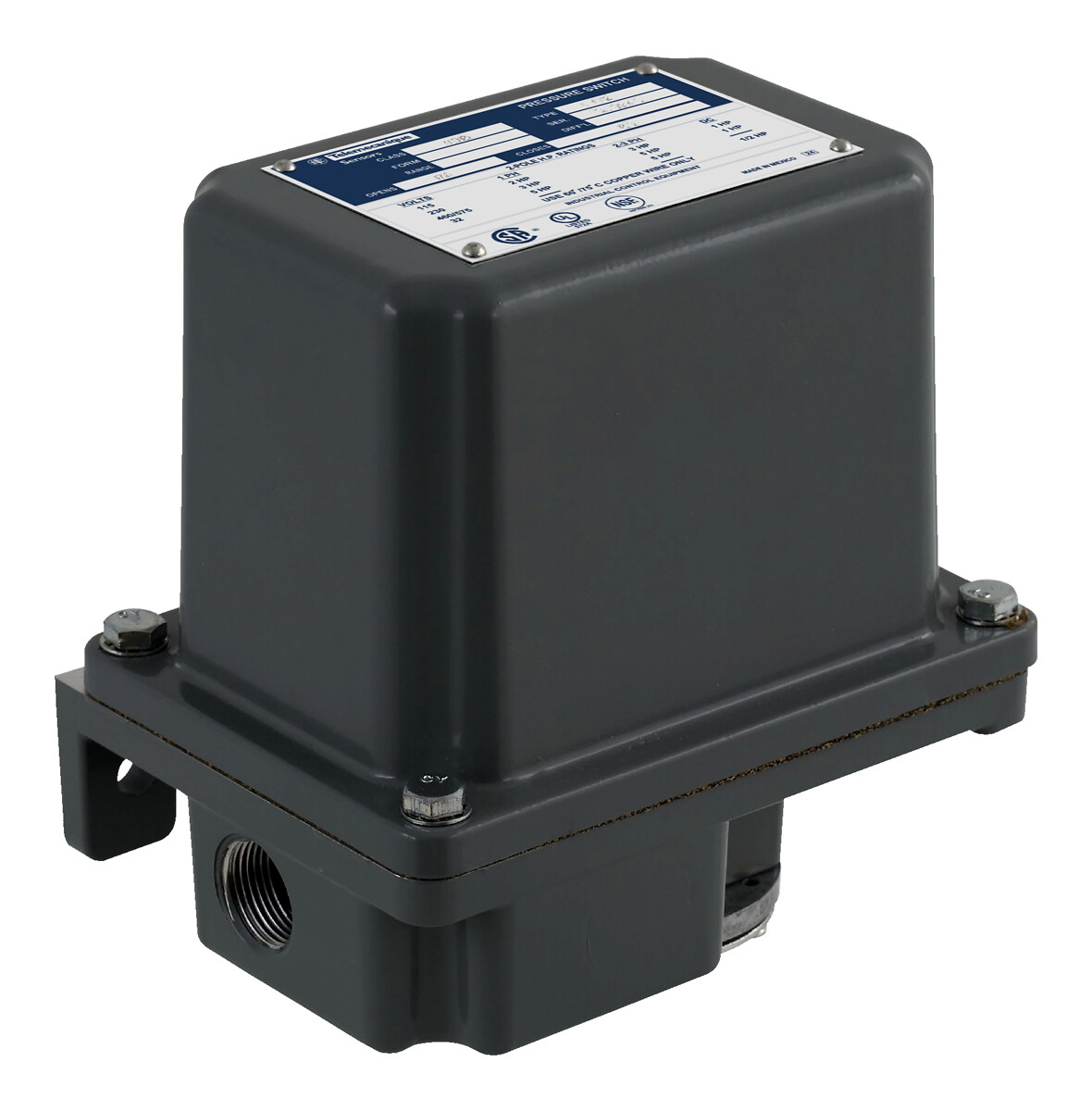

Pump or compressor switch 9013GH - adjustable diff. - factory setting

End of commercialisation End of commercialization date : End of service date :

Download pdf datasheet Download 3d cad file Find a distributor

9013GHW5J99Z is replaced by the following product:

9013GHW5J99

Pumptrol, pump or compressor switch 9013GH, adjustable diff., factory setting

Quantity :  1

Expand all

Datasheet

Range of product
Pumptrol
Pressure sensor name
9013GH
Value of setting
Specify pressure settings
Electrical circuit type
Power circuit
Product specific application
Control electrically driven water pumps and air compressors
Quantity per set
1
Type of packing
Individual
Factory modification
Not applicable
Pressure sensor type
Electromechanical pressure switch
Controlled fluid
Air (32-158 °F), fresh water (32-158 °F)
Pressure switch type of operation
Regulation between 2 thresholds
Pressure actuator
Diaphragm
Setting
Internal
Scale type
Adjustable differential
Local display
Without
Contacts type and composition
2 NC, snap action, DPST-DB, Form YY
Electrical connection
Screw-clamp terminals, clamping capacity: 10 AWG, screw-clamp terminals, clamping capacity: 5.261 mm²
Materials in contact with fluid
Zinc plated steel or equivalent flange, nitrile (Buna-N) or equivalent rubber diaphragm
Fluid connection type
0.25 inch male pipe thread on pressure connection conforming to UL 508
Material
Cast aluminium: enclosure
Operating position
Any position
Terminal block type
4 terminals
Operating rate
10 CYCLE_PER_MINUTE
Repeat accuracy
+/- 3 %
Terminals description ISO n°1
L1-T1
L2-T2
Standards
CE
NSF ANSI 372
UL 508
Product certifications
CSA
UL listed
Protective treatment
None
NEMA degree of protection
NEMA 4 conforming to UL 50
IP degree of protection
IP20 conforming to IEC 60529
Unit type of package 1
PCE
Number of units in package 1
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
