ACW5M129012

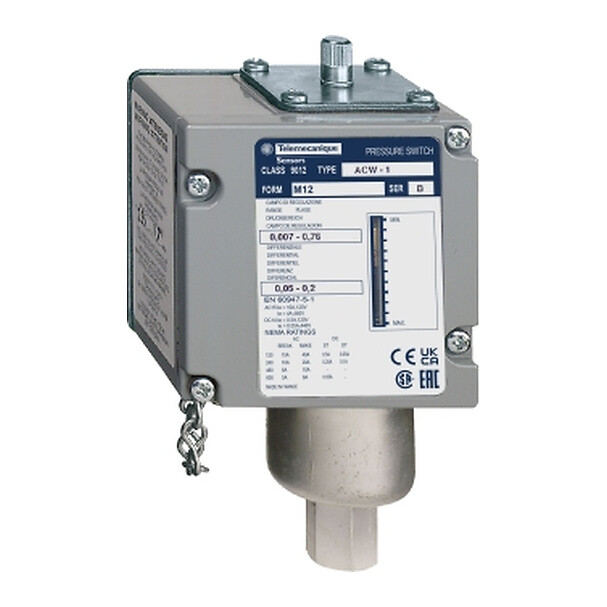

Pressure switch, ACW, pressure range 5.2 bar, adjustable scale, 1CO, 2 thresholds
COMMERCIALISED
Expand all
Datasheet
Range of product
Telemecanique Pressure sensors XM
Pressure sensor type
Electromechanical pressure sensor
Product or component type
Electromechanical pressure sensor
Pressure sensor name
ACW
Product specific application
For regulation between 2 thresholds
ETIM classification
ETIM 9 - EC000243 - Pressure switch
Enclosure material
Zinc alloy
Materials in contact with fluid
Phosphor bronze
Pressure sensor size
5.2 Bar
Maximum permissible pressure - per cycle
7 Bar
Pressure actuator
Bellows
Possible differential minimum at low setting
0.3 Bar
Possible differential maximum at high setting
1 Bar
Possible differential minimum at high setting
0.3 Bar
Controlled fluid
Air (-73-125 °C), hydraulic oil (-73-125 °C), non-corrosive fluid (-73-125 °C)
Fluid connection type
G 1/4 (female) conforming to ISO 228
Local display
Without
Scale type
Adjustable differential
Setting
External
Product certifications
CSA
UL recognized
UL recognized
Standards
CE
IEC 60947-5-1
IEC 60947-5-1
Indivisible sale quantity
1
Mechanical durability
1000000 cycles
Cable entry
1 entry tapped for Pg 13.5 cable gland, cable outer diameter: 9-13 mm conforming to NF C 68-300
Electrical connection
Screw-clamp terminals, clamping capacity: 1 x 1...2 x 2.5 mm²
Electrical circuit type
Control circuit
Contacts type and composition
1 C/O snap action
Terminals description ISO n°1
(1-2)NC
(3-4)NO
(3-4)NO
Short-circuit protection
10 A cartridge fuse, type gG
Adjustable range of switching point on rising pressure
0.3700…6.2000 bar
Adjustable range of switching point on falling pressure
0.0700…5.2000 bar
Possible differential maximum at low setting
1 Bar
Height
167 mm
Width
88 mm
Depth
68 mm
Product weight
1.55 kg
IP degree of protection
IP65 conforming to IEC 60529
Ambient air temperature for operation
-56…85 °C
Protective treatment
TC
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Warranty
18 months
Country of origin
CZ (Czech Republic)
FR (France)
FR (France)
Unit type of package 1
PCE
Number of units in package 1
1
New Package 1 GTIN-13
3666916026793
Package 1 height
8 cm
Package 1 width
10 cm
Package 1 length
20.5 cm
Package 1 weight
1.55 kg
Unit type of package 2
S03
Number of units in package 2
15
New Package 2 GTIN 14
13666916026790
Package 2 height
30 cm
Package 2 width
30 cm
Package 2 length
40 cm
Unit type of package 3
CAR
Number of units in package 3
1
New Package 3 GTIN 14
23666916026797
Package 3 height
20.5 cm
Package 3 width
8 cm
Package 3 length
10 cm
Package 3 weight
1.521 kg
