Home Products FSG9

FSG9

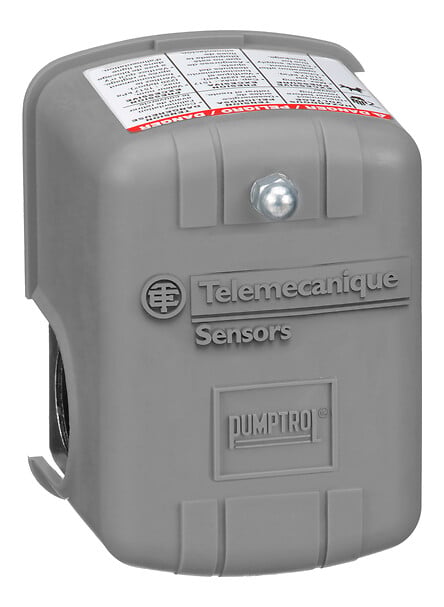

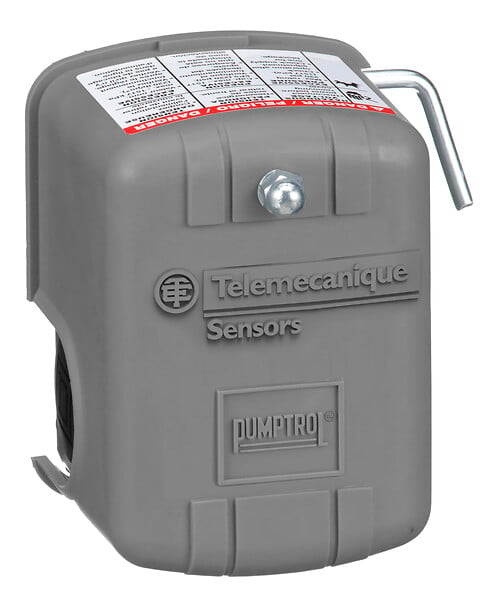

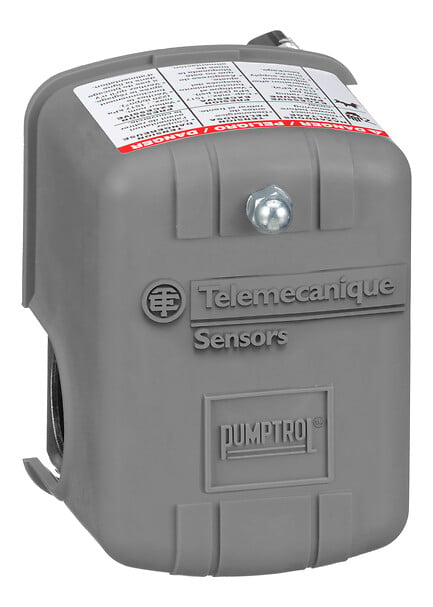

Pressure sensors XM, pressure switch FSG 4.6 bar, adjustable scale 2 thresholds, 2NC

arrow

COMMERCIALISED

Download pdf datasheet Download 3d cad file Find a distributor

Expand all

Datasheet

Range of product
Telemecanique Pressure sensors XM
Pressure sensor type
Electromechanical pressure sensor
Pressure sensor name
FSG
Fluid connection type
R 1/4 (male) conforming to ISO 7
Controlled fluid
Fresh water (0-70 °C), sea water (0-70 °C)
Cable entry
2 cable entries with grommet
Contacts type and composition
2 NC snap action
Product specific application
Not applicable
Pressure switch type of operation
Regulation between 2 thresholds
Electrical connection
Screw-clamp terminals, clamping capacity: 1 x 1...2 x 2 mm²
Scale type
Adjustable differential
Setting
Internal
Local display
Without
Electrical circuit type
Power circuit
Materials in contact with fluid
Nitrile
nylon 6/6
zinc plated steel
Enclosure material
PS
Operating position
Any position
Pressure actuator
Diaphragm
Terminal block type
4 terminals
Operating rate
10 CYCLE_PER_MINUTE
Terminals description ISO n°1
(1-2)NC
(3-4)NC
Standards
CE
IEC 60730
Protective treatment
TC
Electrical shock protection class
Class I conforming to IEC 536
IP degree of protection
IP20 conforming to IEC 60529
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
7.2 CENTIMETER
Package 1 width
10.3 CENTIMETER
Package 1 length
10.5 CENTIMETER
Package 1 weight
0.382 KILOGRAM
Unit type of package 2
S03
Number of units in package 2
25
Package 2 height
30 CENTIMETER
Package 2 width
30 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
10.124 KILOGRAM
Unit type of package 3
CAR
Number of units in package 3
1
Package 3 height
7.2 CENTIMETER
Package 3 width
10.5 CENTIMETER
Package 3 length
10.3 CENTIMETER
Package 3 weight
0.38 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Expand all

Technical Drawings

Dimensions

epds

Wiring Diagram

Connections

epds

Curves

Operating Curves

epds
  • (y) Rising pressure
  • (x) Falling pressure
  • 1 : Maximum differential
  • 2 : Minimum differential

Curves

epds
  • (y) Rising pressure
  • (x) Falling pressure
  • 1 : Maximum differential
  • 2 : Minimum differential
  • (y) Pressure
  • (x) Time
  • (1) Adjustable value
