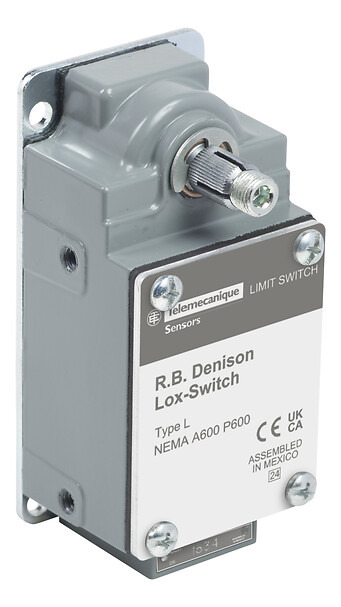

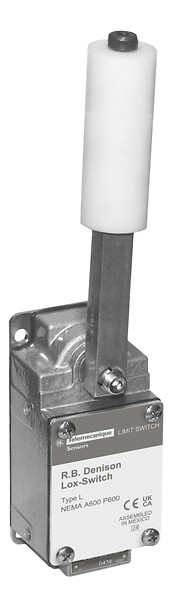

L525WDR2M56
Limit switch, L525, L100/300, 600 V 12amp type l +options
COMMERCIALISED
Expand all
Datasheet
Range of product
L525
Series name
SEVERE DUTY MILL
Product or component type
LIMIT SWITCH
Product specific application
BELT CONVEYOR SWITCH
Device short name
L525
Body type
FIXED
Head type
ROTARY HEAD
Base plate style
STYLE 2
Body material
CAST ALUMINIUM
Fixing mode
BY THE BODY
Type of operator
spring return without operating lever
Function available
2 STAGES SEQUENTIAL
Switch actuation
CW
FROM LEFT
FROM LEFT
Type of approach
LATERAL APPROACH
Electrical connection
Screw-clamp terminals AWG 22...AWG 12
Cable entry
1 entry for 1/2" - 14 NPT conforming to ANSI B1.20.1
Contacts type and composition
2 NO
Switch function
DPST NO DB
Contact form
FORM XX
Contacts material
90/10 AgCdO on copper backing stationary contact,
silver on steel backing moveable contact
silver on steel backing moveable contact
Contacts usage
NOT APPLICABLE
Contact operation
SNAP ACTION
Positive opening
WITHOUT
Contact code designation
A600, AC (Ue = 600 V) Ie = 5 A conforming to NEMA rating designation,
A600, AC (Ue = 480 V) Ie = 6.25 A conforming to NEMA rating designation,
A600, AC (Ue = 240 V) Ie = 12.5 A conforming to NEMA rating designation,
A600, AC (Ue = 120 V) Ie = 20 A conforming to NEMA rating designation,
P600, DC (Ue = 600 V) Ie = 0.2 A conforming to NEMA rating designation,
P600, DC (Ue = 250 V) Ie = 1 A conforming to NEMA rating designation,
P600, DC (Ue = 120 V) Ie = 5 A conforming to NEMA rating designation
A600, AC (Ue = 480 V) Ie = 6.25 A conforming to NEMA rating designation,
A600, AC (Ue = 240 V) Ie = 12.5 A conforming to NEMA rating designation,
A600, AC (Ue = 120 V) Ie = 20 A conforming to NEMA rating designation,
P600, DC (Ue = 600 V) Ie = 0.2 A conforming to NEMA rating designation,
P600, DC (Ue = 250 V) Ie = 1 A conforming to NEMA rating designation,
P600, DC (Ue = 120 V) Ie = 5 A conforming to NEMA rating designation
Terminals description ISO n°1
3 4 RIGHT SIDE CONTACT
5 6 LEFT SIDE CONTACT
5 6 LEFT SIDE CONTACT
Shock resistance
30 gn for 9 ms conforming to IEC 60068-2-27
Vibration resistance
10 gn (f= 10-55 Hz) conforming to IEC 60068-2-6
NEMA degree of protection
NEMA 1 conforming to Nema type 250,
NEMA 2 conforming to Nema type 250,
NEMA 4 conforming to Nema type 250,
NEMA 12 conforming to Nema type 250,
NEMA 13 conforming to Nema type 250
NEMA 2 conforming to Nema type 250,
NEMA 4 conforming to Nema type 250,
NEMA 12 conforming to Nema type 250,
NEMA 13 conforming to Nema type 250
IP degree of protection
IP67 conforming to IEC 60529
Electrical shock protection class
Class 0 conforming to IEC 61140
Protective treatment
CORROSION RESISTANT GRAY PAINT
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
5.8420 CENTIMETER
Package 1 width
7.1120 CENTIMETER
Package 1 length
12.9540 CENTIMETER
Package 1 weight
680.3890 GRAM
