XC011L2

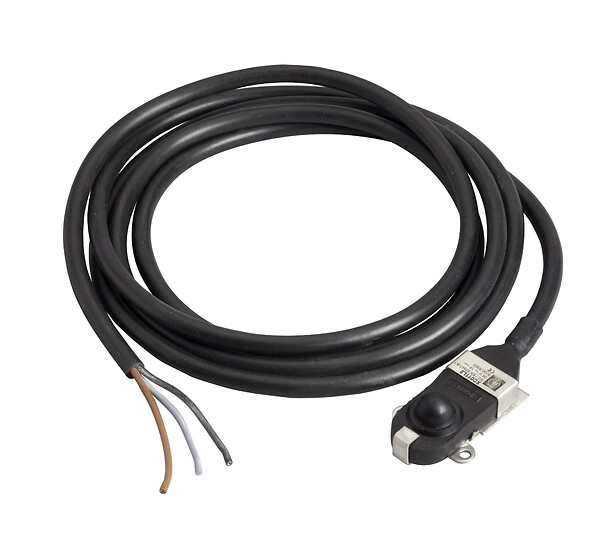

Miniature snap switch XC01, domed encased plunger, 2 m cable
END OF COMMERC ANNOUNCED End of commercialization date : December 31st 2026 End of service date : December 31st 2026
Expand all
Datasheet
Range of product
OsiSense XC
Series name
Special format
Product or component type
Microswitch
Device short name
XC0
Detector design
Sealed
Head type
Plunger head
Fixing mode
By the body with steel, zinc passivated fixing supports
Movement of operating head
Linear
Type of operator
Domed plunger
Switch actuation
On end
Type of approach
Vertical approach
Electrical connection
A05 VVF cable
Cable composition
3 x 0.75 mm²
Contact operation
Snap action
Contacts material
Silver contacts
Cable outer diameter
7.6 MILLIMETER
IP degree of protection
IP66
Marking
CE
Standards
IEC 60947-5-1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
2.5 CENTIMETER
Package 1 width
13.5 CENTIMETER
Package 1 length
14 CENTIMETER
Package 1 weight
0.167 KILOGRAM
Unit type of package 2
S03
Number of units in package 2
15
Package 2 height
30 CENTIMETER
Package 2 width
30 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
3.074 KILOGRAM
Indivisible sale quantity
1
Expand all
Technical Drawings
Dimensions
Wiring Diagram
Single-pole CO Snap Action
- 1 : Black
- 2 : Brown
- 4 : Blue
