XC2JC101

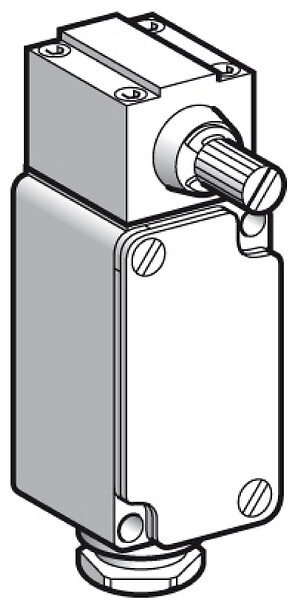

Limit switch, Limit switches XC Standard, 600 VDC 10 amp XC2J +options

arrow

Commercialised

Download pdf datasheet Download 3d cad file Find a distributor

Expand all

Datasheet

Range of product
OsiSense XC
Series name
Special format
Product or component type
Limit switch
Product specific application
For severe applications
Device short name
XC2J
Body type
Fixed
Head type
Rotary head
Material
Metal
Movement of operating head
Rotary
Type of operator
Roller lever thermoplastic
Switch actuation
By 30° cam
Type of approach
Lateral approach, 2 directions
Contact operation
Snap action
Fixing mode
By the body
Electrical connection
Screw-clamp terminals, clamping capacity: 1 x 0.5...2 x 2.5 mm²
Cable entry
1 entry incorporating cable gland, cable outer diameter: 6-13.5 mm
Contacts insulation form
Za
Positive opening
Without
Contacts material
Silver plated contacts
Contact code designation
-
Resistance across terminals
25 MOhm conforming to IEC 60255-7 category 3, 25 MOhm conforming to NF C 93-050 method A
Terminals description ISO n°1
(13-14-11-12)OF
Shock resistance
25 gn for 18 ms conforming to IEC 60068-2-27
Vibration resistance
10 gn (f= 10-500 Hz) conforming to IEC 60068-2-6
IP degree of protection
IP65 conforming to IEC 60529, IP657 conforming to IEC 60529
IK degree of protection
IK08
Electrical shock protection class
Class I conforming to IEC 60536, class I conforming to NF C 20-030
Product certifications
CSA
DEMKO
NEMKO
Protective treatment
TC
Standards
CSA C22.2 No 14
IEC 60337-1
IEC 60947-5-1
UL 508
VDE 0660-200
Unit type of package 1
PCE
Number of units in package 1
1
Package 2 height
7 CENTIMETER
Package 2 width
4.5 CENTIMETER
Package 2 length
14.5 CENTIMETER
Package 2 weight
597 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
